ONE THOUSAND HORSE-POWER CORLISS ENGINE.

FIG. 1.

DIA. OF CYLINDER = 40”
STROKE = 10 ft.
REVS = 41
SCALE OF DIAGRAMS 40 LBS = 1 INCH

FIG. 2.

We illustrate one of the largest Corliss engines ever
constructed. It is of the single cylinder, horizontal, condensing
type, with one cylinder 40 inches diameter, and 10 feet stroke, and
makes forty-five revolutions per minute, corresponding to a piston
speed of 900 feet per minute. At mid stroke the velocity of the
piston is 1,402 feet per minute nearly, and its energy in foot
pounds amounts to about 8.6 times its weight. The cylinder is steam
jacketed on the body and ends, and is fitted with Corliss valves
and Inglis & Spencer’s automatic Corliss valve expansion gear.

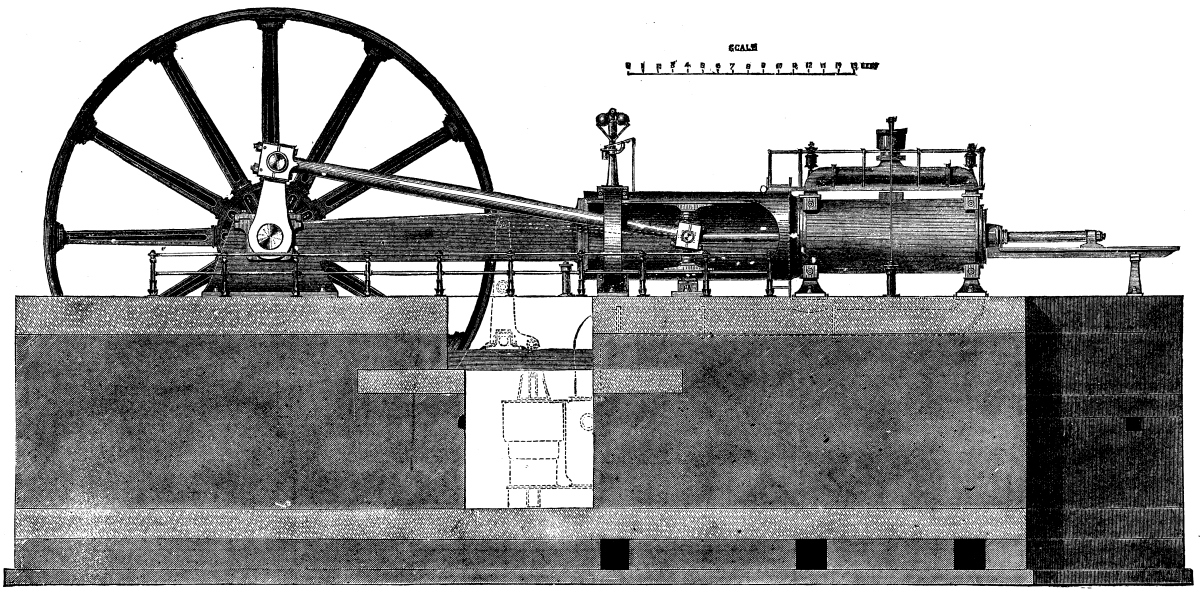

Referring to the general drawing of the engine, it will be seen
that the cylinder is bolted directly to the end of the massive cast
iron frame, and the piston coupled direct to the crank by the steel
piston rod and crosshead and the connecting rod. The connecting rod
is 28 feet long center to center, and 12 inches diameter at the
middle. The crankshaft is made of forged Bolton steel, and is 21
inches diameter at the part where the fly-wheel is carried. The fly
driving wheel is 35 feet in diameter, and grooved for twenty-seven
ropes, which transmit the power direct to the various line shafts
in the mill. The rope grooves are made on Hick, Hargreaves &
Co.’s standard pattern of deep groove, and the wheel, which is
built up, is constructed on their improved plan with separate arms
and boss, and twelve segments in the rim with joints planed to the
true angle by a special machine designed and made by themselves.
The weight of the fly-wheel is about 60 tons. The condensing
apparatus is arranged below, so that there is complete drainage
from the cylinder to the condenser. The air pump, which is 36
inches diameter and 2 feet 6 inches stroke, is a vertical pump
worked by wrought iron plate levers and two side links, shown by
dotted lines, from the main crosshead. The engine is fenced off by
neat railing, and a platform with access from one side is fitted
round the top of the cylinder for getting conveniently to the valve

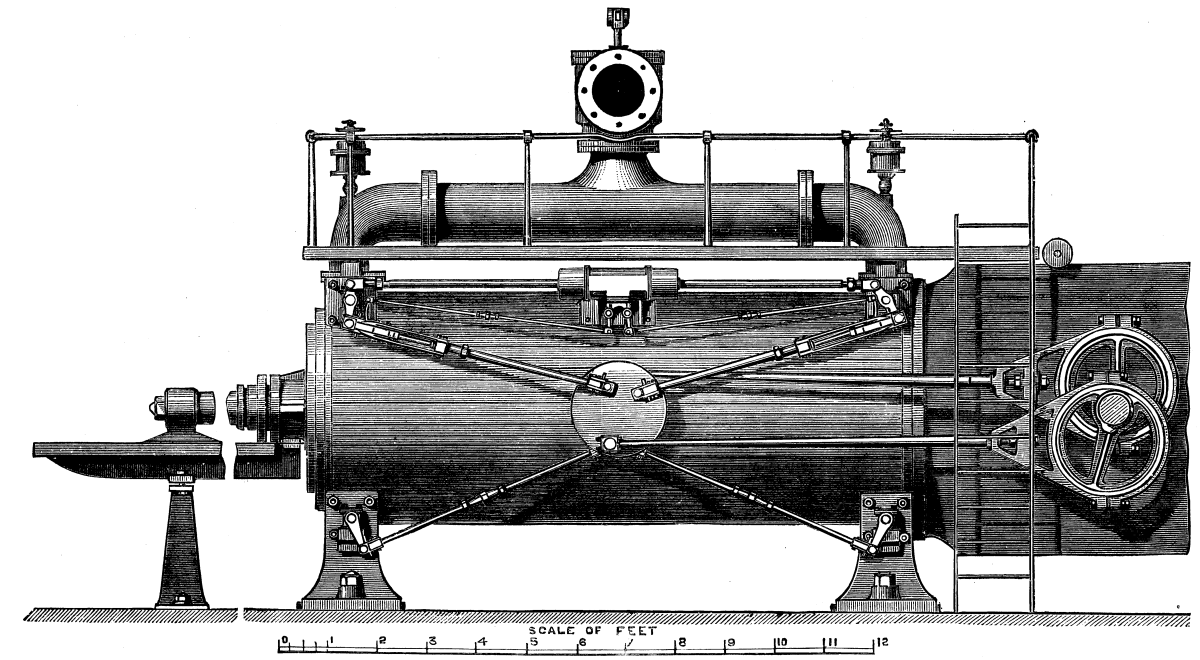

spindles and lubricators. The above engraving, which is a side
elevation of the cylinder, shows the valve gear complete. There are
two central disk plates worked by separate eccentrics, which give
separate motion to the steam and exhaust valves. The eccentrics are
mounted on a small cross shaft, which is driven by a line shaft and
gear wheels. The piston rod passes out at the back end of the

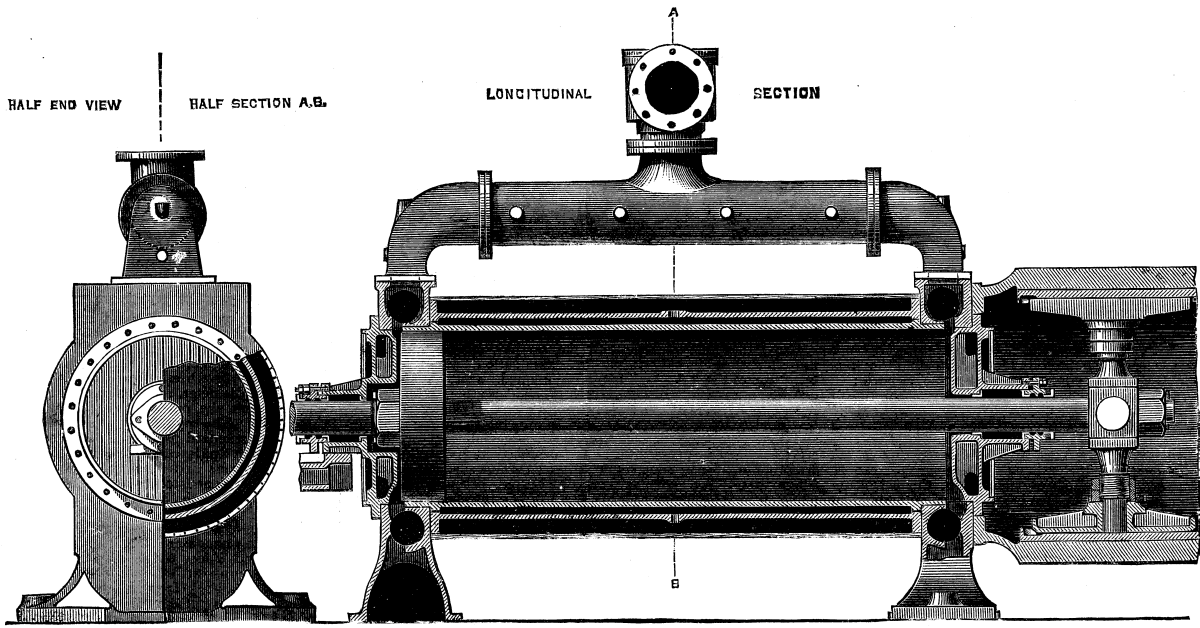

cylinder and is carried by a shoe slide and guide bar, as shown
more fully in the detailed sectional elevation through the
cylinder, showing also the covers and jackets in section. The
cylinder, made in four pieces, is built up on Mr. W. Inglis’s
patent arrangement, with separate liner and steam jacket casing and
separate end valve chambers. This arrangement simplifies the
castings and secures good and sound ones. The liner has face
joints, which are carefully scraped up to bed truly to the end
valve chambers. The crosshead slides are each 3 feet 3 inches long
and I foot 3 inches wide. The engine was started last year, and has
worked beautifully from the first, without heating of bearings or
trouble of any kind, and it gives most uniform and steady turning.
It is worked now at forty-one revolutions per minute, or only 820
feet piston speed, but will be worked regularly at the intended 900
feet piston speed per minute when the spinning machinery is adapted
for the increase which the four extra revolutions per minute of the
engine will give; the load driven is over 1,000 horsepower, the
steam pressure being 50 lb. to 55 lb., which, however, will be
increased when the existing boilers, which are old, come to be

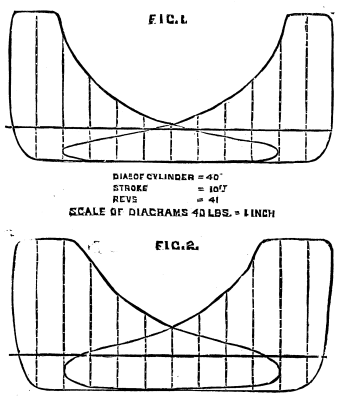

replaced by new. Indicator diagrams from the engines are given on
page 309. The engine is very economical in steam consumption, but
no special trials or tests have been made with it. An exactly
similar engine, but of smaller size, with a cylinder 30 inches
diameter and 8 feet stroke, working at forty-five revolutions per
minute, made by Messrs. Hick, Hargreaves & Co. for Sir Titus
Salt, Sons & Co.’s mill at Saltaire, was tested about two years
ago by Mr. Fletcher, chief engineer of the Manchester Steam Users’
Association, and the results which are given below pretty fairly
represent the results obtained from this class of engine. Messrs.
Hick, Hargreaves & Co. are now constructing a single engine of
the same type for 1,800 indicated horse-power for a cotton mill at
Bolton; and they have an order for a pair of horizontal compound
Corliss engines intended to indicate 3,000 horse-power. These
engines will be the largest cotton mill engines in the
world.–The Engineer.

1000 HORSE POWER CORLISS ENGINE.–BY HICK.
HARGREAVES & CO.

Result of Trials with Saltaire Horizontal Engine on February
14th and 15th, 1878. Trials made by Mr. L.E. Fletcher, Chief
Engineer Steam Users’ Association, Manchester.

Engine single-cylinder, with Corliss valves. Inglis and
Spencer’s valve gear. Diameter of cylinder. 30in.; stroke, 8ft.; 45
revolutions per minute.

1000 HORSE POWER CORLISS ENGINE.–BY HICK,
HARGREAVES & CO.

1000 HORSE POWER CORLISS ENGINE.–BY HICK,
HARGREAVES & CO.

OPENING OF THE NEW WORKSHOP OF THE STEVENS INSTITUTE OF
TECHNOLOGY.

In our SUPPLEMENT No. 283 we gave reports of some of the
addresses of the distinguished speakers, and we now present the
remarks of Prof. Raymond and Horatio Allen, Esq.:

SPEECH OF PROF. R. W. RAYMOND.

A few years ago, at one of the meetings of our Society of Civil
Engineers we spent a day or so in discussing the proper mode of
educating young men so as to fit them for that profession. It is a
question that is reopened for us as soon as we arrive at the age
when we begin to consider what career to lay out for our sons. When
we were young, the only question with parents in the better walks
of life was, whether their sons should be lawyers, physicians, or
ministers. Anything less than a professional career was looked upon
as a loss of caste, a lowering in the social scale. These things
have changed, now that we engineers are beginning to hold up our
heads, as we have every reason to do; for the prosperity and
well-being of the great nations of the world are attributable,
perhaps, more to our efforts than to those of any other class.
When, in the past, the man of letters, the poet, the orator,
succeeded, by some fit expression, by some winged word, to engage
the attention of the world concerning some subject he had at heart,
the highest praise his fellow man could bestow was to cry out to
him, “Well said, well said!” But now, when, by our achievements,
commerce and industry are increased to gigantic proportions, when
the remotest peoples are brought in ever closer communication with
us, when the progress of the human race has become a mighty
torrent, rushing onward with ever accelerating speed, we glory in
the yet higher praise, “Well done, well done!” Under these
circumstances, the question how a young man is best fitted for our
profession has become one of increasing importance, and three
methods have been proposed for its solution. Formerly the only
point in debate was whether the candidate should go first to the
schools and then to the workshop, or first to the shop and then to
the schools. It was difficult to arrive at any decision; for of the
many who had risen to eminence as engineers, some had adopted one
order and some the other. There remained a third course, that of
combining the school and the shop and of pursuing simultaneously
the study of theory and the exercise of practical manipulation.
Unforeseen difficulties arose, however, in the attempt to carry out
this, the most promising method. The maintenance of the shop proved
a heavy expense, which it was found could not be lessened by the
manufacture of salable articles, because the work of students could
not compete with that of expert mechanics. It would require more
time than could be allotted, moreover, to convert students into
skilled workmen. Various modifications of this combination of
theory and practice, including more or less of the Russian system
of instruction in shop-work, have been tried in different schools
of engineering, but never under so favorable conditions as the
present. With characteristic caution and good judgment, President
Morton has studied the operation of the scheme of instruction
adopted in the Stevens Institute, and, noting its deficiencies, has
now supplied them with munificent liberality, giving to it a
completeness that leaves seemingly nothing that could be improved
upon, even in a prayer or a dream. Still, no one will be more ready
to admit than he who has done all this, that it is not enough to
fit up a machine shop, be it never so complete, and light it with
an electric lamp. The decision as to its efficiency must come from
the students that are so fortunate as to be admitted to it. If such
young men, earnest, enthusiastic, with every incentive to exertion
and every advantage for improvement, here, where they can feel the
throbbing of the great heart of enterprise, within sight of bridges
upon which their services will be needed, within hearing of the
whistles of a score of railroads, and the bells of countless
manufactories which will want them; if such as these, trained under
such instructors and amid such surroundings, prove to be not fitted
for the positions waiting for them to fill, it will have been
definitely demonstrated that the perfect scheme is yet unknown.

SPEECH OF MR. HORATIO ALLEN.

Impressed with the very great step in advance which has been
inaugurated here this evening, I feel crowding upon me so many
thoughts that I cannot make sure that, in selecting from them, I
may not leave unsaid much that I should say, and say some things
that I had better omit. Some years ago, when asked by a wealthy
gentleman to what machine-shop he had best send his son, who was to
become a mechanical engineer, I advised him not to send him to any,
but to fit up a shop for him where he could go and work at what he
pleased without the drudgery of apprenticeship, to put him in the
way of receiving such information as he needed, and especially to
let him go where he could see things break. Great, indeed, are the
advantages of those who have the opportunity of seeing things
break, of witnessing failures and profiting by them. When men have
enumerated the achievements of those most eminent in our profession
the thought has often struck me, “Ah! if we could only see that
man’s scrap heap.”

There are many who are able to construct a machine for a given
purpose so that it will work, but to do this so that it will not
cost too much is an entirely different problem. To know what to
omit is a rare talent. I once found a young man who could tell
students what to store up in their minds for immediate use, and
what to skim over or omit; but I could not keep him long, for more
lucrative positions are always waiting for such men.

The advice I gave my wealthy friend was given before the Stevens
Institute had developed in the direction it has now. The foundation
of this advice, namely, to combine a certain amount of judicious
practice with theory, is now in a fair way to be carried out, and
although things will probably not be permitted to break here, the
students will doubtless have opportunities for looking around them
and supplementing their systematic instruction here by observation
abroad.

LIGHT STEAM ENGINE FOR BALLOONS.

We here illustrate one of a couple of compound engines designed
and constructed by Messrs. Ahrbecker, Son & Hamkens, of
Stamford Street, S.E., for Captain Mojaisky, of the Russian
Imperial Navy, who intends to use them for aeronautical purposes.
The larger of these engines has cylinders 3¾ in. and
7½ in. in diameter and 5 in. stroke, and when making 300
revolutions per minute it develops 20 actual horse power, while its
weight is but 105 lbs. The smaller engine–the one illustrated–has
cylinders 2½ in. and 5 in. in diameter, and 3½ in.
stroke, and weighs 63 lbs., while when making 450 revolutions it
develops 10 actual horse power.

The two engines are identical in design, and are constructed of
forged steel with the exception of the bearings, connecting-rods,
crossheads, slide valves and pumps, which are of phosphor-bronze.
The cylinders, with the steam passages, etc., are shaped out of the
solid. The standards, as will be seen, are of very light T steel,
the crankshafts and pins are hollow, as are also the crosshead
bolts and piston rods. The small engine drives a single-acting air
pump of the ordinary type by a crank, not shown in the drawing. The
condenser is formed of a series of hollow gratings.

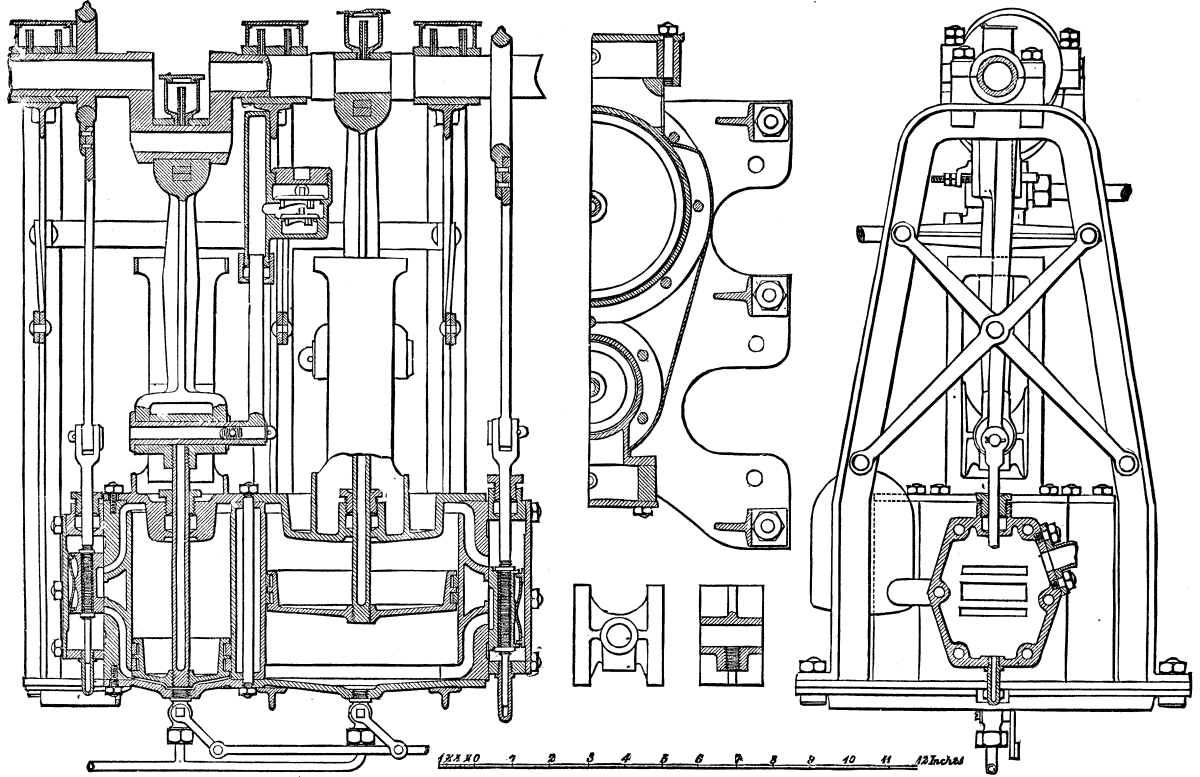

LIGHT STEAM ENGINE FOR AERONAUTICAL PURPOSES

Steam is supplied to the two engines by one boiler of the
Herreshoff steam generator type, with certain modifications,
introduced by the designers, to insure the utmost certainty in
working. It is of steel, the outside dimensions being 22 in. in
diameter, 25 in. high, and weighs 142 lb. The fuel used is
petroleum, and the working pressure 190 lb. per square inch.

The constructors consider the power developed by these engines
very moderate, on account of the low piston speed specified in this
particular case. In some small and light engines by the same makers
the piston speed is as high as 1000 ft. per minute. The engines now
illustrated form an interesting example of special designing, and
Messrs. Ahrbecker, Son, and Hamkens deserve much credit for the
manner in which the work has been turned out, the construction of
such light engines involving many practical
difficulties,–Engineering.

Mount Baker, Washington Territory, has shown slight symptoms of
volcanic activity for several years. An unmistakable eruption is
now in progress.

COMPLETE PREVENTION OF INCRUSTATION IN BOILERS.

The chemical factory, Eisenbuettel, near Braunschweig,
distributes the following circular: “The principal generators of
incrustation in boilers are gypsum and the so-called bicarbonates
of calcium and magnesium. If these can be taken put of the water,
before it enters the boiler, the formation of incrustation is made
impossible; all disturbances and troubles, derived from these
incrustations, are done away with, and besides this, a considerable
saving of fuel is possible, as clear iron will conduct heat quicker
than that which is covered with incrustation.”

J. Kolb, according to Dingler’s Polyt. Journal, says: “A
boiler with clear sides yielded with 1 kil. coal 7.5 kil. steam,
after two months only 6.4 kil. steam, or a decrease of 17 per cent.
At the same time the boiler had suffered by continual working.”

Suppose a boiler free from inside crust would yield a saving of
only 5 per cent. in fuel (and this figure is taken very low
compared with practical experiments) it would be at the same time a
saving of 3c. per cubic meter water. If the cleaning of one cubic
meter water therefore costs less than 3c., this alone would be an
advantage.

Already, for a long time, efforts have been made to find some
means for this purpose, and we have reached good results with lime
and chloride of barium, as well as with magnesia preparations. But
these preparations have many disadvantages. Corrosion of the
boiler-iron and muriatic acid gas have been detected. (Accounts of
the Magdeburg Association for boiler management.)

Chloride of calcium, which is formed by using chloride of
barium, increases the boiling point considerably, and diminishes
the elasticity of steam; while the sulphate of soda, resulting from
the use of carbonate of soda, is completely ineffectual against the
boiler iron. It increases the boiling point of water less than all
other salts, and diminishes likewise the elasticity of steam
(Wullner).

In using magnesia preparation, the precipitation is only very
slowly and incompletely effected–one part of the magnesia will be
covered by the mire and the formed carbonate of magnesia in such a
way, that it can no more dissolve in water and have any effect
(Dingler’s Polyt. Journal, 1877-78).

The use of carbonate of soda is also cheaper than all other
above mentioned substances.

One milligramme equivalent sulphate of lime, in 1 liter, = 68
grammes sulphate of lime in 1 cubic meter, requiring for
decomposition:

120 gr. (86-88 per cent.) chloride of barium of commerce–at
$5.00 = 0.6c.

Or, 50 gr. magnesia preparation–at $10.00 = 0.5c.

Or, 55 gr. (96-98 per cent.) carbonate of soda–at $7.50 =
0.41c.

The proportions of cost by using chloride of barium, magnesia
preparation, carbonate of soda, will be 6 : 5 : 4.

ARRANGEMENT FOR PURIFYING BOILER-WATER WITH LIME AND CARBONATE
OF SODA.

We need for carrying out these manipulations, according to the
size of the establishment, one or more reservoirs for precipitating
the impurities of the water, and one pure water reservoir, to take
up the purified water; from the latter reservoir the boilers are
fed. The most practical idea would be to arrange the precipitating
reservoir in such manner that the purified water can flow directly
into the feeding reservoir.

The water in the precipitating reservoir is heated either by
adding boiling water or letting in steam up to 60° C. at least.
The precipitating reservoirs (square iron vessels or horizontal
cylinders–old boilers) of no more than 4 or 4½ feet, having
a faucet 6 inches above the bottom, through which the purified
water is drawn off, and another one at the bottom of the vessel, to
let the precipitate off and allow of a perfect cleaning. In a
factory with six or seven boilers of the usual size, making
together 400 square meters heating surface, two precipitating
reservoirs, of ten cubic meters each, and one pure water reservoir
of ten or fifteen cubic meter capacity, are used.

In twenty-four hours about 240 cubic meters of water are
evaporated; we have, therefore, to purify twenty-four precipitating
reservoirs at ten cubic meters each day, or ten cubic meters each
hour.

It is profitable to surround the reservoirs with inferior
conductors of heat, to avoid losses.

The contents of the precipitating reservoirs have to be stirred
up very well, and for this purpose we can either arrange a
mechanical stirrer or do it by hand, or the best would be a
“Korting steam stirring and blowing apparatus.” In using the latter
we only have to open the valve, whereby in a very short time the
air driven through the water stirs this up and mixes it thoroughly
with the precipitating ingredients. In a factory where boilers of
only 15 to 100 square meters heating surface are, one precipitating
reservoir of two to ten cubic meters and one pure water reservoir
of three to ten cubic meters capacity are required. For
locomobiles, two wooden tubs or barrels are sufficient.

THE PURIFICATION OF THE WATER.

After the required quantity of lime and carbonate of soda which
is necessary for a total precipitation has been figured out from
the analysis of the water, respectively verified by practical
experiments in the laboratory, the heated water in the reservoir is
mixed with the lime, in form of thin milk of lime, and stirred up;
we have to add so much lime, that slightly reddened litmus paper
gives, after ¼ minute’s contact with this mixture, an
alkaline reaction, i.e., turns blue; now the solution of carbonate
of soda is added and again stirred well.

After twenty or thirty minutes (the hotter the water, the
quicker the precipitation) the precipitate has settled in large
flocks at the bottom, and the clear water is drawn off into the
pure water reservoir. The precipitating and settling of the
impurities can also take place in cold water; it will require,
however, a pretty long time.

In order to avoid the weighing and slaking of the lime, which is
necessary for each precipitation, we use an open barrel, in which a
known quantity of slaked lime is mixed with three and a half or
four times its weight of water, and then diluted to a thin paste,
so that one kilogramme slaked lime is diluted to twenty-five liters
milk of lime.

Example.–If we use for ten cubic meters water, one kilogramme
lime, or in one day (in twenty-four hours), 240 cubic meters 24 kg.
lime, a vessel four or five feet high and about 700 liters
capacity, in which daily 24 kg. lime with about 100 liters water
are slaked and then diluted to the mark 600, constantly stirring,
25 liters of this mixture contain exactly 1 kg. slaked lime.

Before using, this milk of lime has to be stirred up and allowed
to settle for a few seconds; and then we draw off the required
quantity of milk of lime (in our case 25 liters) through a faucet
about 8 inches above the bottom, or we can dip it off with a pail.
For the first precipitate we always need the exact amount of milk
of lime, which we have figured out, or rather some more, but for
the next precipitates we do not want the whole quantity, but always
less, as that part of the lime, which does not settle with the
precipitate, will be good for use in further precipitations. It is
therefore important to control the addition of milk of lime by the
use of litmus paper. If we do not add enough lime, it prevents the
formation of the flocky precipitate, and, besides, more carbonate
of soda is used. By adding too much lime, we also use more
carbonate of soda in order to precipitate the excess of lime. We
can therefore add so much lime, that there is only a very small
excess of hydrous lime in the water, and that after well stirring,
a red litmus paper being placed in the water for twenty seconds,
appears only slightly blue. After a short time of practice, an
attentive person can always get the exact amount of lime which
ought to be added. On adding the milk of lime, we have to dissolve
the required amount of pure carbonate of soda in an iron kettle, in
about six or eight parts hot water with the assistance of steam;
add this to the other liquid in the precipitating reservoirs and
stir up well. The water will get clear after twenty-five or thirty
minutes, and is then drawn off into the pure water reservoir.

EXAMINATION OF WATER WHICH HAS BEEN PURIFIED BY MEANS OF MILK
OF LIME AND CARBONATE OF SODA.

In order to be convinced that the purification of the water has
been properly conducted, we try the water in the following manner.
Take a sample of the purified water into a small tumbler, and add a
few drops of a solution of oxalate of ammonia; this addition must
neither immediately nor after some minutes cause a milky appearance
of the water, but remain bright and clear. A white precipitate
would indicate that not enough carbonate of soda had been added. A
new sample is taken of the purified water and a solution of
chloride of calcium added; a milky appearance, especially after
heating, would show that too much carbonate of soda had been
added.

RESULTS OF THIS WATER PURIFICATION.

1. The boilers do not need to be cleaned during a whole season,
as they remain entirely free from incrustation; it is only required
to avoid a collection of soluble salts in the boiler, and therefore
it is partly drawn off twice a week.

2. The iron is not touched by this purified water. The water
does not froth and does not stop up valves. The fillings in the
joints of pipes, etc., do not suffer so much, and therefore keep
longer.

3. The steam is entirely free from sour gases.

4. The production of steam is easier and better.

5. A considerable saving of fuel can soon be perceived.

6. The cost of cleaning boilers from incrustation, and loss of
time caused by cleaning, is entirely done with. Old incrustations,
which could not be cleaned out before, get decomposed and break off
in soft pieces.

7. The cost of this purification is covered sufficiently by the
above advantages, and besides this, the method is cheaper and surer
than any other.

The chemical factory, Eisenbuettel, furnishes pure carbonate of
soda in single packages, which exactly correspond with the
quantity, stated by the analysis, of ten cubic meters of a certain
water. The determination of the quantities of lime and carbonate of
soda necessary for a certain kind of water, after sending in a
sample, will be done without extra charge.–Neue Zeitung fur
Ruebenzucker Industrie.

EDDYSTONE LIGHTHOUSE.

The exterior work on the new Eddystone Lighthouse is about two
thirds done. In the latter part of April fifty-three courses of
granite masonry, rising to the height of seventy feet above high
water, had been laid, and thirty-six courses remained to be set.
The old lighthouse had been already overtopped. As the work
advances toward completion the question arises: What shall be done
with John Smeaton’s famous tower, which has done such admirable
service for 120 years? One proposition is to take it down to the
level of the top of the solid portion, and leave the rest as a
perpetual memorial of the great work which Smeaton accomplished in
the face of obstacles vastly greater than those which confront the
modern architect. The London News says: “Were Smeaton’s
beautiful tower to be literally consigned to the waves, we should
regard the act as a national calamity, not to say scandal; and, if
public funds are not available for its conservation, we trust that
private zeal and munificence may be relied on to save from
destruction so interesting a relic. It certainly could not cost
much to convey the building in sections to the mainland, and there,
on some suitable spot, to re-erect it as a national tribute to the
genius of its great architect.” When the present lighthouse was
built one of the chief difficulties was in getting the building
materials to the spot. They were conveyed from Millbay in small
sailing vessels, which often beat about for days before they could
effect a landing at the Eddystone rocks, so that each arrival
called out the special gratitude of Smeaton.

ROLLING-MILL FOR MAKING CORRUGATED IRON.

MESSRS. SCHULZ, KNAUDT & Co., of Essen, who are making an
application of corrugated iron in the construction of the interior
flues of steam boilers, have devised a new mill for the manufacture
of this form of iron plates, and which is represented in the
accompanying cut, taken from the Deutsche Industrie Zeitung.
The supports of the two accessory cylinders, F F, rest on two
slides, G G, which move along the oblique guides, H H. As a
consequence of this arrangement, when the cylinders, F F, are
caused to approach the cylinder, D, both are raised at the same
instant.

When the cylinders, F, occupy the position represented in the
engraving by unbroken lines, the flat plate, O, is simply submitted
to pressure between the cylinders, D and P, the cylinders, F F,
then merely acting as guides. But when, while the plate is being
thus flattened between the principal cylinders, the accessory
cylinders are caused to rise, the plate is curved as shown by the
dotted lines, O’ O’. To obtain a uniformity in the position of the
two cylinders, F F, the following mechanism is employed: Each
cylinder has an axle, to which is affixed a crank, Q, connected by
means of a rod, R, with the slide, G. These axles are also provided
with toothed sectors, L L, which gear with two screws, L L, whose
threads run in opposite directions. These screws are mounted on a
shaft, N, which may be revolved by any suitable arrangement.

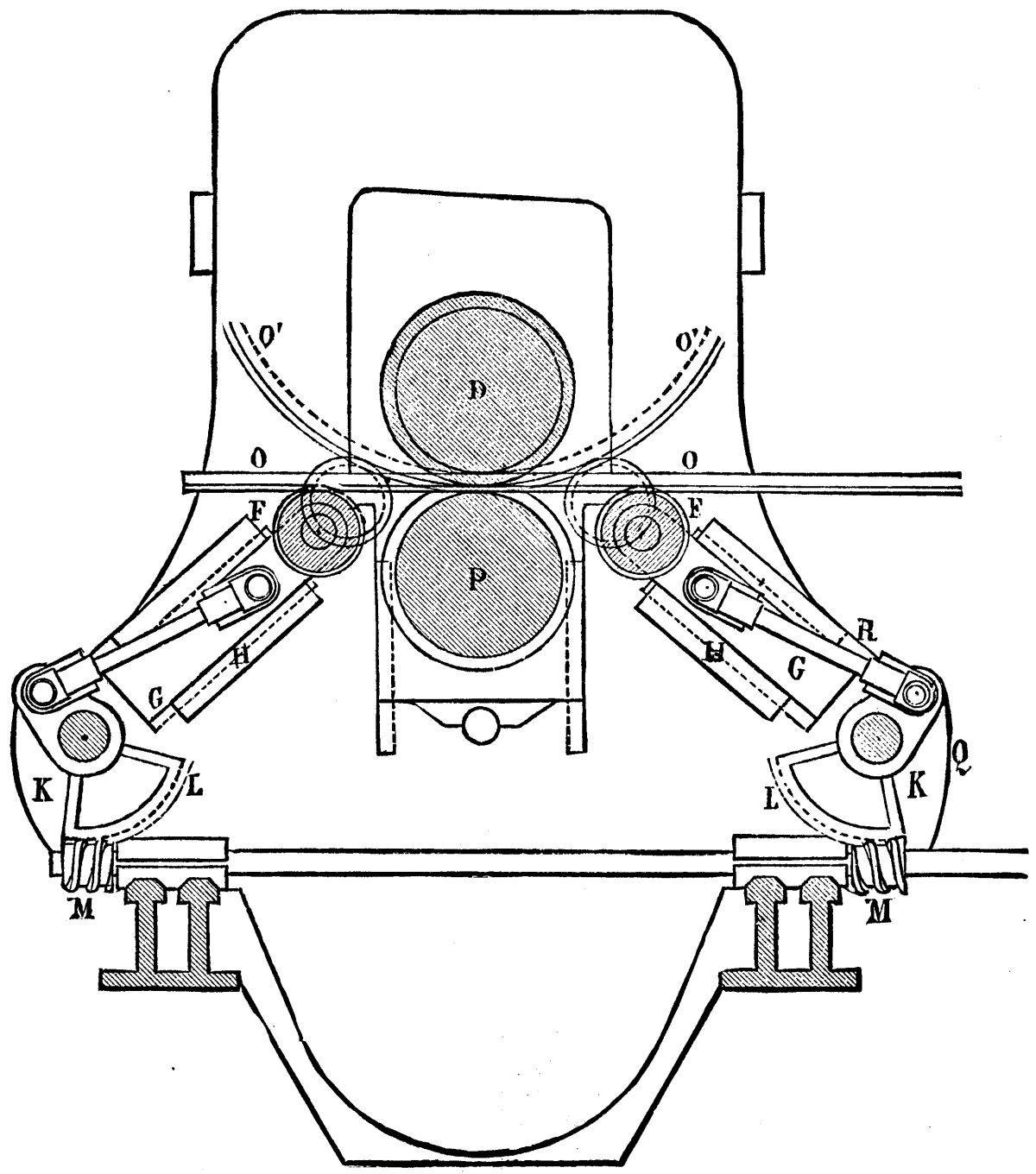

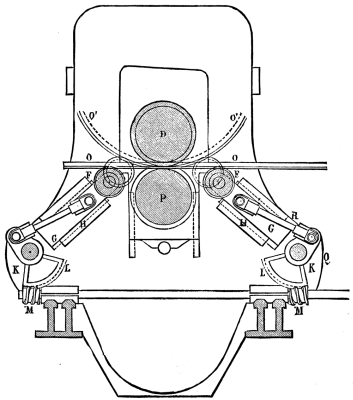

ROLLING MILL FOR MAKING CORRUGATED IRON

RAILWAY TURN-TABLE IN THE TIME OF LOUIS XIV.

The small engraving which we reproduce herewith from La
Nature is deposited at the Archives at Paris. It is catalogued
in the documents relating to Old Marly, 1714, under number 11,339,
Vol. 1. The design represents a diversion called the Jeu de la
Roulette which was indulged in by the royal family at the
sumptuous and magnificent chateau of Mary-le-Roi.

PLEASURE CAR; RAILWAY AND TURN-TABLE OF THE TIME OF
LOUIS XIV.

According to Alex. Guillaumot the apparatus consisted of a sort
of railway on which the car was moved by manual labor. In the car,
which was decorated with the royal colors, are seen seated the
ladies and children of the king’s household, while the king himself
stands in the rear and seems to be directing operations. The
remarkable peculiarity to which we would direct the attention of
the reader is that this document shows that the car ran on rails
very nearly like those used on the railways of the present time,
and that a turn-table served for changing the direction to a right
angle in order to place the car under the shelter of a small
building. The picture which we reproduce, and the authenticity of
which is certain, proves then that in the time of Louis XIV. our
present railway turn-tables had been thought of and
constructed–which is a historic fact worthy of being noted. It is
well known that the use of railways in mines is of very ancient
date, but we do not believe that there are on record any documents
as precise as that of the Jeu de la Roulette as to the
existence of turn-tables in former ages.

NEW SIGNAL WIRE COMPENSATOR.

To the Editor of the Scientific American:

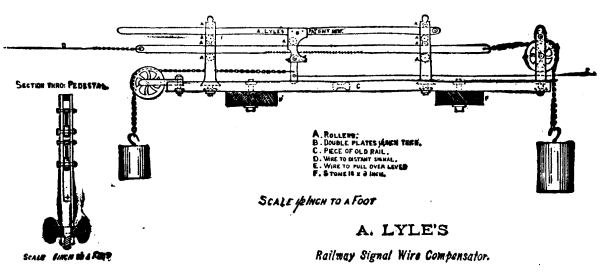

I send you a plate of my new railway signal wire compensator.
Here in India signal wires give more trouble, perhaps, than in
America or elsewhere, by expansion and contraction. What makes the
difficulty more here is the ignorance and indolence of the point
and signalmen, who are all natives. There have been numerous
collisions, owing to signals falling off by contraction. Many
devices and systems have been tried, but none have given the
desired result. You will observe the signal wire marked D is
entirely separated and independent of the wire, E, leading to
lever. On the Great Indian and Peninsula Railway I work one of
these compensators, 1,160 yards from signal, which stands on a
summit the grade of which is 1 in 150; and on the Nizam State
Railway I have one working on a signal 800 yards. This signal had
previously given so much trouble that it was decided to do away
with it altogether. It stands on top of a high cutting and on a
1,600 foot curve.

Railway Signal Wire Comensator

I have noted on the compensator fixed at 1,160 yards, 13¼
inches contraction and expansion. The compensator is very simple
and not at all likely to get out of order. On new wire, when I fix
my compensator, I usually have an adjusting screw on the lead to
lever. This I remove when the wire has been stretched to its full
tension. I have everything removed from lever, so there can be no
meddling or altering. When once the wire is stretched so that no
slack remains between lever and trigger, no further adjustment is
necessary.

A. LYLE,

Chief Maintenance Inspector, Permanent Way,

H.H. Nizam State Railway, E. India.

Secunderabad, India, 1881.

TANGYE’S HYDRAULIC HOIST.

TANGYE’S HYDRAULIC HOIST.

The great merits of hydraulic hoists generally as regards safety
and readiness of control are too well known to need pointing out
here. We may, therefore, at once proceed to introduce to our
readers the apparatus of this class illustrated in the above
engravings. This is a hoist (Cherry’s patent) manufactured by
Messrs. Tangye Brothers, of London and Birmingham, and which
experience has proved to be a most useful adjunct in warehouses,

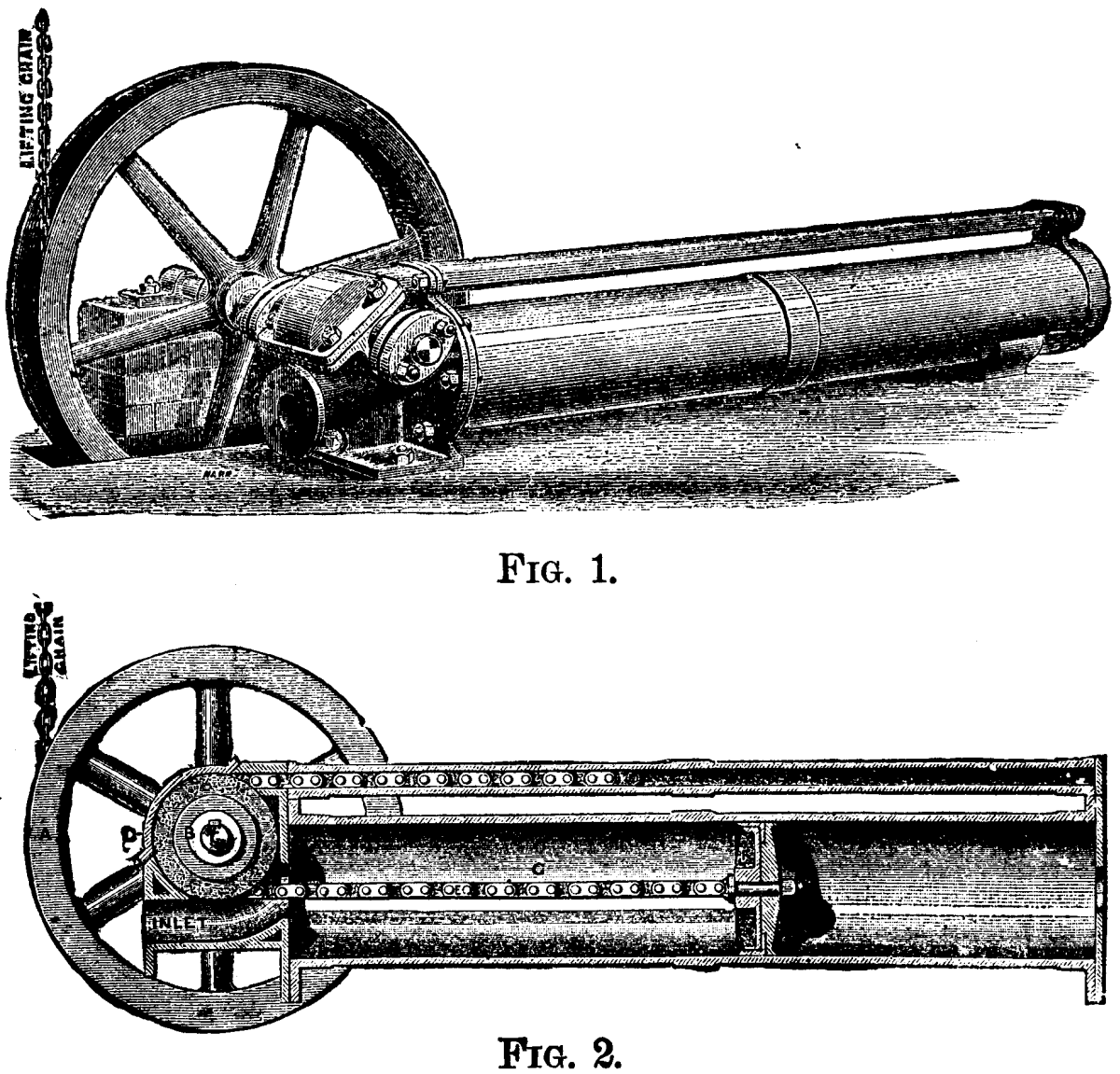

railway stations, hotels, and the like. Fig. 1 of our engraving
shows a perspective view of the hoist, Fig. 2 being a longitudinal
section. It will be seen that this apparatus is of very simple
construction, the motion of the piston being transmitted directly
to the winding-drum shaft by means of a flexible steel rack.
Referring to Fig. 2, F is a piston working in the cylinder, G; E is
the flexible steel rack connected to the piston, F, and gearing
with a toothed wheel, B, which is inclosed in a watertight casing
having cover, D, for convenient access. The wheel, B, is keyed on a
steel shaft, C, which passes through stuffing-boxes in the casing,
and has the winding barrel, A, keyed on it outside the casing. H is
a rectangular tube, which guides the free end of the flexible steel
rack, E. The hoist is fitted with a stopping and starting valve, by
means of which water under pressure from any convenient source of
supply may be admitted or exhausted from the cylinder. The action
in lifting is as follows: The water pressure forces the piston
toward the end of the cylinder. The piston, by means of the
flexible steel rack, causes the toothed wheel to revolve. The
winding barrel, being keyed on the same shaft as the toothed wheel,
also revolves, and winds up the weight by means of the lifting
chain. Two special advantages are obtained by this simple method of
construction. In the first place, twice the length of stroke can be
obtained in the same space as compared with the older types of
hydraulic hoist; and, from the directness of the action, the
friction is reduced to a minimum. This simple method of
construction renders the hoist very compact and easily fixed; and,
from the directness with which the power is conveyed from the
piston to the winding drum, and the frictionless nature of the
mechanism, a smaller piston suffices than in the ordinary hydraulic
hoists, and a smaller quantity of water is required to work
them.–Iron.

POWER LOOM FOR DELICATE FABRICS.

The force with which the shuttle is thrown in an ordinary power
loom moving with a certain speed is always considerable, and, as a
consequence of the strain exerted on the thread, it is frequently
necessary to use a woof stronger than is desirable, in order that
it may have sufficient resistance. On another hand, when the woof
must be very fine and delicate the fabric is often advantageously
woven on a hand loom. In order to facilitate the manufacture of
like tissues on the power loom the celebrated Swiss manufacturer,
Hanneger, has invented an apparatus in which the shuttle is not
thrown, but passed from one side to the other by means of hooks, by
a process analogous to weaving silk by hand. A loom built on this
principle was shown at work weaving silk at the Paris Exhibition of
1878. This apparatus, represented in the annexed figure, contains

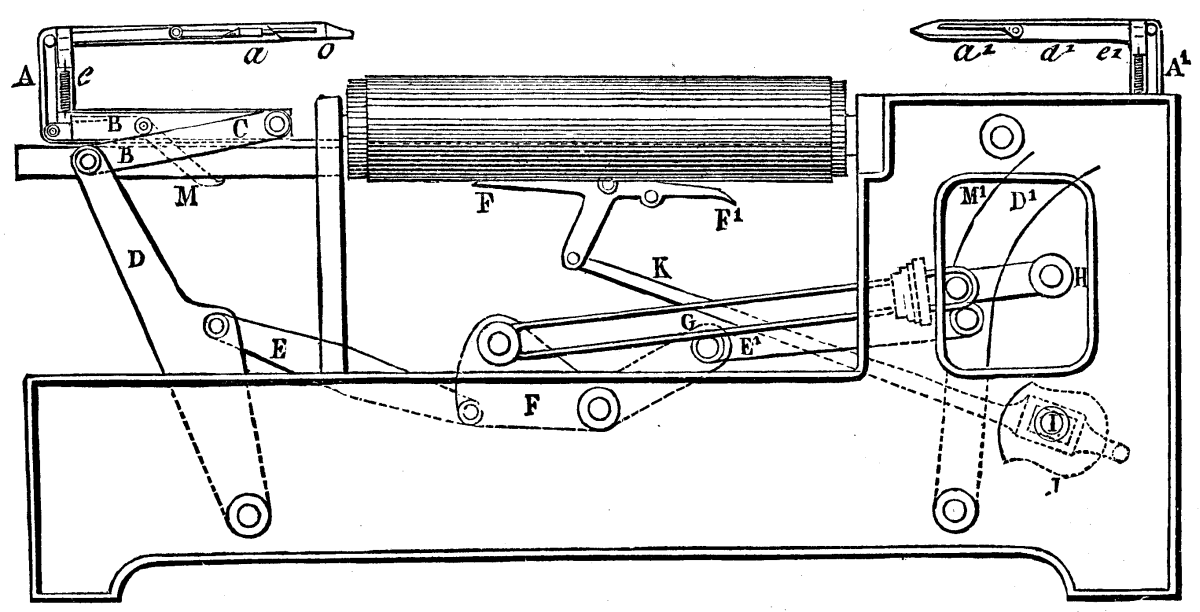

some arrangements which are new and interesting. On each side of
the woof in the heddle there is a carrier, B. These carriers are
provided with hooks, A A’, having appendages, a a’, which
are fitted in the shuttle, O. The latter is of peculiar
construction. The upper ends of the hooks have fingers, d
d’, which holds the shuttle in position as long as the action
of the springs, e e’, continues. The distance that the
shuttle has to travel includes the breadth of the heddle, the
length of the shuttle, and about four inches in addition. The
motion of the two carriers, which approach each other and recede
simultaneously, is effected by the levers, C, D, E, and C’, D’, E’.
The levers, E, E’, are actuated by a piece, F, which receives its
motion from the main shaft, H, through the intervention of a crank
and a connecting rod, G, and makes a little more than a quarter
revolution. The levers, E, E’, are articulated in such a way that
the motion transmitted by them is slackened toward the outer end
and quickened toward the middle of the loom. While the carriers, B
B’, are receiving their alternate backward and forward motion, the
shaft, I (which revolves only half as fast as the main shaft),
causes a lever, F F’, to swing, through the aid of a crank, J, and
rod, K. Upon the two carriers, B B’, are firmly attached two hooks,
M M’, which move with them. When the hook, M, approaches the
extremity of the lever, F, the latter raises it, pushes against the
spring, E, and sets free the shuttle, which, at the same moment,
meets the opposite hook, a’, and, being caught by it, is
carried over to the other side. The same thing happens when the
carrier, B’, is on its return travel, and the hook, M’, mounts the
lever, F’, which is then raised.

POWER LOOM FOR DELICATE FABRICS.

As will be seen from this description, the woof does not undergo
the least strain, and may be drawn very gently from the shuttle.
Neither does this latter exert any friction on the chain, since it
does not move on it as in ordinary looms. In this apparatus,
therefore, there may be employed for the chain very delicate
threads, which, in other looms, would be injured by the shuttle
passing over them. Looms constructed on this plan have for some
time been in very successful use in Switzerland.

HOW VENEERING IS MADE.

The process of manufacture is very interesting. The logs are
delivered in the mill yard in any suitable lengths as for ordinary
lumber. A steam drag saw cuts them into such lengths as may be
required by the order in hand; those being cut at the time of our
visit were four feet long. After cutting, the logs are placed in a
large steam box, 15 feet wide, 22 feet long, and six feet high,
built separate from the main building. This box is divided into two
compartments. When one is filled entirely full, the doors are
closed, and the steam, supplied by the engine in the main building,
is turned on. The logs remain in this box from three to four hours,
when they are ready for use. This steaming not only removes the
bark, but moistens and softens the entire log. From the steam box
the log goes to the veneer lathe. It is here raised, grasped at
each end by the lathe centers, and firmly held in position,
beginning to slowly revolve. Every turn brings it in contact with
the knife, which is gauged to a required thickness. As the log
revolves the inequalities of its surface of course first come in
contact with the keen-edged knife, and disappear in the shape of
waste veneer, which is passed to the engine room to be used as
fuel. Soon, however, the unevenness of the log disappears, and the
now perfect veneer comes from beneath the knife in a continuous
sheet, and is received and passed on to the cutting table. This
continues until the log is reduced to about a seven inch core,
which is useless for the purpose. The veneer as it comes rolling
off the log presents all the diversity of colors and the beautiful
grain and rich marking that have perhaps for centuries been growing
to perfection in the silent depths of our great forests.

From the lathe, the veneer is passed to the cutting table, where
it is cut to lengths and widths as desired. It is then conveyed to
the second story, where it is placed in large dry rooms, air tight,
except as the air reaches them through the proper channels. The
veneer is here placed in crates, each piece separate and standing
on edge. The hot air is then turned on. This comes from the sheet
iron furnace attached to the boiler in the engine room below, and
is conveyed through large pipes regulated by dampers for putting on
or taking off the heat. There is also a blower attached which keeps
the hot air in the dry rooms in constant motion, the air as it
cools passing off through an escape pipe in the roof, while the
freshly heated air takes its place from below. These rooms are also
provided with a net-work of hot air pipes near the floor. The
temperature is kept at about 165°, and so rapid is the drying
process that in the short space of four hours the green log from
the steam box is shaved, cut, dried, packed, and ready for
shipment.

After leaving the dry rooms it is assorted, counted, and put up
in packages of one hundred each, and tied with cords like lath,
when it is ready for shipment. Bird’s-eye maple veneer is much more
valuable and requires more care than almost any other, and this is
packed in cases instead of tied in bundles. The drying process is
usually a slow one, and conducted in open sheds simply exposed to
the air. Mr. Densmore’s invention will revolutionize this process,
and already gives his mill a most decided advantage.

The mill will cut about 30,000 feet of veneer in a day, and this
cut can be increased to 40,000 if necessary. Mr. Densmore has
already received several large orders, and the rapidly increasing
demand for this material is likely to give the mill all the work it
can do. The timber used is principally curled and bird’s-eye maple,
beech, birch, cherry, ash, and oak. These all grow in abundance in
this vicinity, and the beautifully marked and grained timber of our
forests will find fitting places in the ornamental uses these
veneers will be put to.

THE CONSTITUENT PARTS OF LEATHER.

The constituent parts of leather seem to be but little
understood. The opinions of those engaged in the manufacture of
leather differ widely on this question.

Some think that tannin assimilates itself with the hide and
becomes fixed there by reason of a special affinity. Others regard
the hide as a chemical combination of gelatine and tannin. We know
that the hide contains some matters which are not ineradicable, but
only need a slight washing to detach them.

We deem it advisable, in order to examine the hide properly
so-called, to dispense with those eradicable substances which may
be regarded, to some extent, as not germain to it, and confine our
attention to the raw stock, freed from these imperfections.

It is well known that a large number of vegetable substances are
employed as tanning agents. Our researches have been directed to
leather tanned by means of the most important of these agents.

Many questions present themselves in the course of such an
examination. Among others, that most important one, from a
practical point of view, of the weight the tanning agent gives to
the hide, that is to say, the result in leather of weight given to
the raw material. The degree of tannage is also to be considered;
the length of time during which the tanning agent is to be left
with the hide; in short, the influence upon the leather of the
substances used in its production. That is why we have made the
completest possible analysis of different leathers.

Besides ordinary oak bark there are used at present very
different substances, such as laurel, chestnut, hemlock, quebracho
and pine bark, sumac, etc.

Water is an element that exists in all hides, and it is
necessary to take it into consideration in the analysis. It is
present in perceptible quantity even in dry hides. This water
cannot be entirely eradicated without injuring the leather, which
will lose in suppleness and appearance. Water should then be
considered as one of the elements of leather, but it must be
understood that if it exceeds certain limits, say 12 to 14 per
cent., it becomes useless and even injurious. Moreover, if there is
any excess over the normal quantity, it becomes deceptive and
dishonest, as in such a case one sells for hides that which is
nothing but water. Supposing that a hide, instead of only 14 per
cent., contained 18 per cent. of water, it is evident that in
buying 100 pounds of such a hide one would pay for four pounds of
water at the rate for which he purchased the hide.

There are, also, some matters soluble in air, which are formed
to a large extent from fat arising as much from the hide as from
tanning substances. The air dissolves at the same time a certain
amount of organic acid and resinous products which the hide has
absorbed. After treating with air, alcohol is used, which dissolves
principally the coloring matters, tannin which has not become
assimilated, bodies analogous to resin, and some extractive
substances.

That which remains after these methods have been pursued ought
to be regarded as the hide proper, that is to say, as the animal
tissue saturated with tannic acid. In this remainder one is able to
estimate with close precision that which belongs to the hide. The
hide being an elementary tissue of unchangeable form, it is easy,
in determining the elementary portion, to find the amount of real
hide remaining in the product. With these elements one can arrive
at a solution of some of the questions we are discussing.

We give below, according to this method, a table showing the
composition of the different leathers exhibited at the Paris
Exposition of 1878. They are the results of careful research, and
we have based our work upon them:

The following table shows the amount of leather produced by
different tannages of 100 pounds of hides:

It is important to mention here the large proportion of resinous
matter hemlock-tanned leather contains. This resin is a very
beautiful red substance, which communicates its peculiar color to
the leather.

We should mention here that in these calculations we assume that
the hide is in a perfectly dry state, water being a changeable
element which does not allow one to arrive at a precise result.

These figures show the enormous differences resulting from
diverse methods of tanning. Hemlock, which threatens to flood the
markets of Europe, distinguishes itself above all. The high results
attributable to the large proportion of resin that the hide
assimilates, explain in part the lowness of its price, which
renders it so formidable a competitor. One is also surprised at the
large return from sumac-tanned hides when it is remembered in how
short a time the tanning was accomplished, which, in the present
case, only occupied half an hour.

The figures show us that the greatest return is obtained by
means of those tanning substances which are richest in resin. In
short, hemlock, sumac, and pine, which give the greatest return,
are those containing the largest amount of resin. Thus, hemlock
bark gives 10.58 per cent. of it, and sumac leaves 22.7 per cent.,
besides the tannin which they contain. We know also that pine bark
is very rich in resin. There is, then, advantage to the tanner, so
far as the question of result is concerned, in using these
materials. There is, however, another side to the question, as the
leather thus surcharged with resin is of inferior quality,
generally has a lower commercial value, and is often of a color but
little esteemed.

The percentage of tannin absorbed by the different methods of
tannages appears in the following table:

The subjoined is a statement of the gelatine and tannin in
leather of different tannages, and also shows the amount of azote
or elementary matter contained in each:

It is not pretended that these figures are absolutely correct,
as they often vary in certain limits even for similar products.
They form, however, a fair basis of calculation.

As to whether leather is a veritable combination, it seems to us
that this question should be answered affirmatively. In fact, the
resistance of leather properly so-called to neutral dissolvents,
argues in favor of this opinion.

Furthermore, the perceptible proportion of tannin remaining
absorbed by a like amount of hide is another powerful argument. It
remains for us to say here that the differences observable in the
quantity of fixed tannin ought to arise chiefly from the different
natures of these tannins, which have properties differing as do
those of one plant from another, and which really have but one
property in common, that of assimilating themselves with animal
tissues and rendering them imputrescible.

In conclusion, these researches determine the functions of
resinous matters which frequently accompany tannin; they show a
very simple method for estimating the results of one’s work, as
well as the degree of tannage.–Muntz & Schoen, in La Halle
aux Cuirs.–Shoe & Leather Reporter.

NEW HIGH SCHOOL FOR GIRLS, OXFORD.

The new High School for Girls at Oxford, built by Mr. T.G.
Jackson, for the Girls’ Public Day School Company, Limited, was
opened September 23, 1880, when the school was transferred from the
temporary premises it had occupied in St. Giles’s. The new building
stands in St. Giles’s road, East, to the north of Oxford, on land
leased from University College, and contains accommodation for
about 270 pupils in 11 class-rooms, some of which communicate by
sliding doors, besides a residence for the mistress, an office and
waiting-room, a room for the teachers, cloak rooms, kitchens, and
other necessary offices, and a large hall, 50 ft. by 30 ft., for
the general assembling of the school together and for use on
speech-days and other public occasions. The principal front faces
St. Giles’s road, and is shown in the accompanying illustration.
The great hall occupies the whole of the upper story of the front
building, with the office and cloak-rooms below it, and the
principal entrance in the center. The class-rooms are all placed in
the rear of the building, to secure quiet, and open on each floor
into a corridor surrounding the main staircase which occupies the
center of the building. The walls are built of Headington stone in
rubble work, with dressings of brick, between which the walling is
plastered, and the front is enriched with cornices and pilasters,
and a hood over the entrance door, all of terra cotta. The hinder
part of the building is kept studiously simple and plain on account
of expense. Behind the school is a large playground, which is
provided with an asphalt tennis-court, and is picturesquely shaded
with apple-trees, the survivors of an old orchard. The builders
were Messrs. Symm & Co., of Oxford; and the terra cotta was
made by Messrs. Doulton, of Lambeth. Mr. E. Long was clerk of
works.–Building News.

SUGGESTIONS IN ARCHITECTURE–NEW HIGH SCHOOL,
OXFORD

PROGRESS IN AMERICAN POTTERY.

No advance in any industry has been more sure than in that of
pottery and chinaware, under the American tariff, or more rapid in
the past four or five years. It took Europe three centuries and the
jealous precautions of royal pottery proprietors to build up the
great protectorates that made their distinctive trade-marks of such
value. The earlier lusters of the Italian faience were guild
privacies or individual secrets, as was almost all the craft of the
earlier art-worker. Royal patronage in England was equivalent to a
protective tariff for Josiah Wedgwood; and everywhere the
importance of guarding the china nurseries has been understood. We
have in this country broadcast and in abundance every type of
material needed for the finest china ware, and for the finer
glasses and enamels. The royal manufactories in Europe were hard
put to it sometimes for want of discovering kaolin beds in their
dominions, but the resources of the United States in these
particulars needed something more than to be brought to light. The
manipulation and washing of the clays to render them immediately
useful to the potteries depends entirely upon the reliance of these
establishments upon home materials. The Missouri potteries have
their supplies near home, but these supplies must be put upon the
market for other cities in condition to compete with the clays of
Europe. There are fine kaolin beds in Chester and Delaware counties
in this State; there are clay beds in New Jersey, and the recent
needs of Ohio potteries have uncovered fine clay in that State.
This shows that not only for the manufacture itself, but for the
development of material here, everything depends upon the stimulus
that protection gives.

Ohio china and Cincinnati pottery are known all over the
country. The Chelsea Works, near Boston, however, are as
distinguished for their clays and faience, and for lustrous tiles
especially (to be used in household decoration) can rival the rich
show that the Doulton ware made at the Centennial. Other New
England potteries are eminent for terra cotta and granite wares. On
Long Island and in New York city there are porcelain and terra
cotta factories of established fame, and the first porcelain work
to succeed in home markets was made at the still busy factories of
Greenpoint. New Jersey potteries take the broad ground of the
useful, first of all, in their manufacture of excellent granite and
cream-colored ware for domestic use, but every year turn out more
beautiful forms and more artistic work. The Etruria Company
especially have succeeded in giving the warm flesh tints to the
“Parian” for busts and statuettes, now to be seen in many shop
windows. These goods ought always to be labeled and known as
American–it adds to their value with any true connoisseur. Some of
these establishments, more than others, have the enterprise to
experiment in native clays, for which the whole trade owes their
acknowledgments.

The demand all through the country by skillful decorators for
the pottery forms to work upon, points to still greater extensions
in this business of making our own china, and to the employment and
good pay of more thousands than are now employed in it. A
collection of American china, terra cotta, etc., begun at this time
and added to from year to year, will soon be a most interesting
cabinet. Both in the eastern and western manufactories ingenious
workers are rediscovering and experimenting in pastes and glazes
and colors, simply because there is a large demand for all such,
and they can be supplied at prices within the reach of most buyers.
It needs only to point out this flourishing state of things,
through the “let-alone” principle, which protection insures to this
industry, to exhibit the threatened damage of the attempt, under
cover of earthenware duties, to get a little free trade through at
this session.–Philadelphia Public Ledger.

PHOTOGRAPHIC NOTES.

Mr. Warnerke’s New Discovery.–Very happily for our art,
we are at the present moment entering upon a stage of improvement
which shows that photography is advancing with vast strides toward
a position that has the possibility of a marvelous future. In
England, especially, great advances are being made. The recent
experiments of our accomplished colleague, Mr. Warnerke, on
gelatine rendered insoluble by light, after it has been sensitized
by silver bromide and developed by pyrogallic acid, have revealed
to us a number of new facts whose valuable results it is impossible
at present to foretell. It seems, however, certain that we shall
thus be able to accomplish very nearly the same effects as those
obtained by bichromatized gelatine, but with the additional
advantage of a much greater rapidity in all the operations. In my
own experiments with the new process of phototypie, I hit upon the
plan of plunging the carbon image, from which all soluble gelatine
had been removed, into a bath of pyrogallic acid, in order to still
further render impermeable the substance forming the printing
surface. I also conceived the idea of afterward saturating this
carbon image with a solution of nitrate of silver, and of
subsequently treating it with pyrogallic acid, in order to still
further render impermeable the substance forming the printing
surface. But the process described by Mr. Warnerke is quite
different; by means of it we shall be able to fix the image taken
in the camera, in the same way as we develop carbon pictures, and
afterward to employ them in any manner that may be desirable. Thus
the positive process of carbon printing would be modified in such a
manner that the mixtures containing the permanent pigment should be
sensitized with silver bromide in place of potassium bichromate. In
this way impressions could be very rapidly taken of positive
proofs, and enlargements made, which might be developed in hot
water, just as in the ordinary carbon process, and at least we
should have permanent images. Mr. Warnerke’s highly interesting
experiments will no doubt open the way to many valuable
applications, and will realize a marked progress in the art of
photography.

Method for Converting Negatives Directly into
Positives.–Captain Bing, who is employed in the topographic
studios of the Ministry of War, has devised a process for the
direct conversion of negatives into positives. The idea is not a
new one; but several experimenters, and notably the late Thomas
Sutton, have pointed out the means of effecting this conversion; it
has never, however, so far as I know, been introduced into actual
practice, as is now the case. The process which I am about to
describe is now worked in the studios of the Topographic Service.
The negative image is developed in the ordinary way, but the
development is carried much further than if it were to be used as
an ordinary negative. After developing and thoroughly washing, the
negative is placed on a black cloth with the collodion side
downward, and exposed to diffuse light for a time, which varies
from a few seconds to two or three minutes, according to the
intensity of the plate. Afterward the conversion is effected by
moistening the plate afresh, and then plunging it into a bath which
is thus composed:

In a few minutes this solution will dissolve all the reduced
silver forming the negative; the negative image is therefore
entirely destroyed; but it has served to impress on the sensitive
film beneath it a positive image, which is still in a latent
condition. It must, therefore, be developed, and to do this, the
film is treated with a solution of–

The process is carried on exactly as if developing an ordinary
negative; but the action of the developer is stopped at the precise
moment when the positive has acquired intensity sufficient for the
purpose for which it is to be used. Fixing, varnishing, etc., are
then carried on the usual way. The great advantage of this process
consists in the fact of its rendering positives of much greater
delicacy than those that are taken by contact; and, on the other
hand, by means of it we are able to avoid two distinct operations,
when for certain kinds of work we require positive plates where a
negative would be of no service. M. V. Rau, the assistant who has
carried out this process under the direction of Captain Bing, has
described it in a work which has just been published by M.
Gauthier-Villars.

Experiments of Captain Bing on the Sensitiveness of Coal
Oil.–The same Captain of Engineers has undertaken a series of
very interesting experiments on the sensitiveness to light of one
or two substances to which bitumen probably owes its sensitiveness,
but which, contrary to what takes place with bitumen, are capable
of rendering very beautiful half tones, both on polished zinc and
on albumenized paper. These sensitive substances are extracted by
dissolving marine glue or coal-tar in benzine. By exposure to
light, both marine-glue and coal-tar turn of a sepia color, and, in
a printing-frame, they render a visible image, which is not the
case with bitumen; their solvents are in the order of their energy;
chloroform, ether, benzine, turpentine, petroleum spirit, and
alcohol. Of these solvents, benzine is the best adapted for
reducing the substances to a fluid state, so as to enable them to
flow over the zinc. The images obtained, which are permanent, and
which are very much like those of the Daguerreotype, are fixed by
means of the turpentine and petroleum spirit. They are washed with
water, and then carefully dried. It is possible to obtain prints
with half-tones in fatty ink by means of plates of zinc coated with
marine-glue. Some attempts in this direction were shown to me,
which promised very well in this respect. We are, therefore, in the
right road, not only for economically producing permanent prints on
paper, but also for making zinc plates in which the phototype film
of bichromatized gelatine is replaced by a solution of marine-glue
and benzine. The substance known in commerce under the name of
pitch or coal-tar will produce the same results.

Bitumen Plates.–A new method of making bitumen plates by
contact has also been introduced into the topographical studios.
The plan, or the original drawing, is placed against a glass plate,
coated with a mixture of bitumen and of marine-glue dissolved in
benzine. The marine-glue gives the bitumen greater pliancy, and
prevents it from scaling off when rubbed, particularly when the
plate is retouched with a dry point. These bitumen plates are so
thoroughly opaque to the penetration of the actinic rays, that the
printing-frame may be left for any time in full sunlight without
any fear of fog being produced on the zinc plate from which the
prints are to be taken.

Method for Topographic Engraving by Commandant de la
Noë.–Before leaving the interesting studios of which I
have been speaking, I ought to mention a very ingenious application
which has been made of a process called topogravure,
invented by Commandant de la Noë, who is the director of this
important department. A plate of polished zinc is coated with
bitumen in the usual way, and then exposed directly to the light
under an original drawing, or even under a printed plan. So soon as
the light has sufficiently acted, which may be seen by means of
photometric bands equally transparent at the plate, all the bitumen
not acted upon is dissolved. As it is a positive which has acted as
matrix, the uncovered zinc indicates the design, and the ground
remains coated with insoluble bitumen. The plate is then etched
with a weak solution of nitric acid in water, and the lines of the
design are thus slightly engraved; the surface is then re-coated
with another layer of bitumen, which fills up all the hollows, and
is then rubbed down with charcoal. All the surface is thus cleaned
off, and the only bitumen which remains is that in the lines,
which, though not deep, are sufficiently so to protect the
substance from the rubbing of the charcoal. When this is done we
have an engraved plate which can be printed from, like a
lithographic stone; it is gummed and wetted in the usual way, and
it gives prints of much greater delicacy and purity than those
taken directly from the bitumen. The ink is retained by the slight
projection of the surface beyond the line, so that it cannot
spread, and a kind of copper plate engraving is taken by
lithographic printing. Besides, in arriving at this result, there
is the advantage of being able to use directly the original plans
and drawings, without being obliged to have recourse to a plate
taken in the camera; the latter is indispensable for printing in
the usual way on bitumen where the impression on the sensitive film
is obtained by means of a negative. It will be seen that this
process is exceedingly ingenious, and not only is its application
very easy, but all its details are essentially practical.

Succinate of Iron Developer.–I have received a letter
from M. Borlinetto, in which he states that he has been induced by
the analogy which exists between oxalic and succinic acids to try
whether succinate of iron can be substituted for oxalate of iron as
a developer. To prove this he prepared some proto-succinate of iron
from the succinate of potassium and proto-sulphate of iron,
following the method given by Dr. Eder for the preparation of his
ferrous oxalate developer. He carried out the development in the
same way as is done by the oxalate, and he found that the succinate
of iron is even more energetic than the oxalate. The plate develops
regularly with much delicacy, and gives a peculiar tone. It is
necessary to take some fresh solution at every operation, on
account of the proto-succinate of iron being rapidly converted into
per-succinate by contact with the air.

Method of Making Friable Hydro-Cellulose.–At the meeting
of the Photographic Society of France, M. Girard showed his method
of preparing cellulose in a state of powder, specially adapted for
the production of pyroxyline for making collodion. Carded
cotton-wool is placed in water, acidulated with 3 per cent. of
sulphuric or nitric acid, and is left there from five to fifteen
seconds; it is then taken out and laid on a linen cloth, which is
then wrung so as to extract most of the liquid. In this condition
there still remains from 30 to 40 per cent. of acidulated water;
the cotton is divided into parcels and allowed to dry in the open
air until it feels dry to the touch, though in this condition it
still contains 20 per cent. of water. It is next inclosed in a
covered jar, which is heated to a temperature of 65° C.; the
desiccation therefore takes place in the closed space, and the
conversion of the material is completed in about two or three
hours. In this way a very perfect hydro-cellulose is obtained, and
in the best form for producing excellent pyroxyline.–Corresp.
Photo Mews.

PHOTO TRACINGS IN BLACK AND COLOR.

Two new processes for taking photo tracings in black and color
have recently been published–“Nigrography” and
“Anthrakotype”–both of which represent a real advance in
photographic art. By these two processes we are enabled for the
first time to accomplish the rapid production of positive copies in
black of plans and other line drawings. Each of these new methods
has its own sphere of action; both, therefore, should deserve
equally descriptive notices.

For large plans, drawn with lines of even breadth, and showing
no gradated lines, or such as shade into gray, the process styled
“nigrography,” invented by Itterbeim, of Vienna, and patented both
in Germany and Austria, will be found best adapted. The base of
this process is a solution of gum, with which large sheets of paper
can be more readily coated than with one of gelatine; it is,
therefore, very suitable for the preparation of tracings of the
largest size. The paper used must be the best drawing paper,
thoroughly sized, and on this the solution, consisting of 25 parts
of gum arabic dissolved in 100 parts of water, to which are added 7
parts of potassium bichromate and I part of alcohol, is spread with
a broad, flat brush. It is then dried, and if placed in a cool,
dark place will keep good for a long time. When used, it is placed
under the plan to be reproduced, and exposed to diffused light for
from five to ten minutes–that is to say, to about 14° of
Vogel’s photometer; it is then removed and placed for twenty
minutes in cold water, in order to wash out all the chromated gum
which has not been affected by light. By pressing between two
sheets of blotting-paper the water is then got rid of, and if the
exposure has been correctly judged the drawing will appear as dull
lines on a shiny ground. After the paper has been completely dried
it is ready for the black color. This consists of 5 parts of
shellac, 100 parts of alcohol, and 15 parts of finely-powdered
vine-black. A sponge is used to distribute the color over the
paper, and the latter is then laid in a 2 to 3 per cent. bath of
sulphuric acid, where it must remain until the black color can be
easily removed by means of a stiff brush. All the lines of the
drawing will then appear in black on a white ground. These
nigrographic tracings are very fine, but they only appear in
complete perfection when the original drawings are perfectly
opaque. Half-tone lines, or the marks of a red pencil on the
original, are not reproduced in the nigrographic copy.

“Anthrakotype” is a kind of dusting-on process. It was invented
by Dr. Sobacchi, in the year 1879, and has been lately more fully
described by Captain Pizzighelli. This process–called also
“Photanthrakography”–is founded on the property of chromated
gelatine which has not been acted on by light to swell up in
lukewarm water, and to become tacky, so that in this condition it
can retain powdered color which had been dusted on it. Wherever,
however, the chromated gelatine has been acted on by light, the
surface becomes horny, undergoes no change in warm water, and loses
all sign of tackiness. In this process absolute opacity in the
lines of the original drawing is by no means necessary, for it
reproduces gray, half-tone lines just as well as it does black
ones. Pencil drawings can also be copied, and in this lies one
great advantage of the process over other photo-tracing methods,
for, to a certain extent, even half-tones can be produced.

For the paper for anthrakotype an ordinary strong, well-sized
paper must be selected. This must be coated with a gelatine
solution (gelatine 1, water 30 parts), either by floating the paper
on the solution, or by flowing the solution over the paper. In the
latter case the paper is softened by soaking in water, is then
pressed on to a glass plate placed in a horizontal position, the
edges are turned up, and the gelatine solution is poured into the
trough thus formed. To sensitize the paper, it is dipped for a
couple of minutes in a solution of potassium bichromate (1 in 25),
then taken out and dried in the dark.

The paper is now placed beneath the drawing in a copying-frame,
and exposed for several minutes to the light; it is afterward laid
in cold water in order to remove all excess of chromate. A copy of
the original drawing now exists in relief on the swollen gelatine,
and, in order to make this relief sticky, the paper is next dipped
for a short time in water, at a temperature of about 28° or
30° C. It is then laid on a smooth glass plate, superficially
dried by means of blotting-paper, and lamp-black or soot evenly
dusted on over the whole surface by means of a fine sieve. Although
lamp-black is so inexpensive and so easily obtained, as material it
answers the present purpose better than any other black coloring
substance. If now the color be evenly distributed with a broad
brush, the whole surface of the paper will appear to be thoroughly
black. In order to fix the color on the tacky parts of the
gelatine, the paper must next be dried by artificial heat–say, by
placing it near a stove–and this has the advantage of still
further increasing the stickiness of the gelatine in the parts
which have not been acted upon by light, so that the coloring
matter adheres even more firmly to the gelatine. When the paper is
thoroughly dry, place it in water, and let it be played on by a
strong jet; this removes all the color from the parts which have
been exposed to the light, and so develops the picture. By a little
gentle friction with a wet sponge, the development will be
materially promoted.

A highly interesting peculiarity of this anthrakotype process is
the fact that a copy, though it may have been incorrectly exposed,
can still be saved. For instance, if the image does not seem to be
vigorous enough, it can be intensified in the simplest way; it is
only necessary to soak the paper afresh, then dust on more color,
etc.; in short, repeat the developing process as above described.
In difficult cases the dusting-on may be repeated five or six
times, till at last the desired intensity is obtained.

By this process, therefore, we get a positive copy of a positive
original in black lines on a white ground. Of course, any other
coloring material in a state of powder may be used instead of soot,
and then a colored drawing on a white ground is obtained. Very
pretty variations of the process may be made by using gold or
silver paper, and dusting-on with different colors; or a picture
may be taken in gold bronze powder on a white ground. In this way
colored drawings may be taken on a gold or a silver ground, and
very bright photo tracings will be the result. Some examples of
this kind, that have been sent us from Vienna, are exceedingly
beautiful.

Summing up the respective advantages of the two processes we
have above described, we may say that “nigrography” is best adapted
for copying drawings of a large size; the copies can with
difficulty be distinguished from good autographs, and they do not
possess the bad quality of gelatine papers–the tendency to roll up
and crack. Drawings, however, which have shadow or gradated lines
cannot be well produced by this process; in such cases it is better
to adopt “anthrakotype,” with which good results will be
obtained.–Photographic News.

ON M. C. FAURE’S SECONDARY BATTERY.

The researches of M. Gaston Planté on the polarization of
voltameters led to his invention of the secondary cell, composed of
two strips of lead immersed in acidulated water. These cells
accumulate, and, so to speak, store up the electricity passed into
them from some outside generator. When the two electrodes are
connected with any source of electricity the surfaces of the two
strips of lead undergo certain modifications. Thus, the positive
pole retains oxygen and becomes covered with a thin coating of
peroxide of lead, while the negative pole becomes reduced to a
clean metallic state.

Now, if the secondary cell is separated from the primary one, we
have a veritable voltaic battery, for the symmetry of the poles is
upset, and one is ready to give up oxygen and the other eager to
receive it. When the poles are connected, an intense electric
current is obtained, but it is of short duration. Such a cell,
having half a square meter of surface, can store up enough
electricity to keep a platinum wire 1 millim. in diameter and 8
centims. long, red-hot for ten minutes. M. Planté has
succeeded in increasing the duration of the current by alternately
charging and discharging the cell, so as alternately to form layers
of reduced metal and peroxide of lead on the surface of the strip.
It was seen that this cell would afford an excellent means for the
conveyance of electricity from place to place, the great drawback,
however, being that the storing capacity was not sufficient as
compared with the weight and size of the cell. This difficulty has
now been overcome by M. Faure; the cell as he has improved it is
made in the following manner:

The two strips of lead are separately covered with minium or
some other insoluble oxide of lead, then covered with an envelope
of felt, firmly attached by rivets of lead. These two electrodes
are then placed near each other in water acidulated with sulphuric
acid, as in the Planté cell. The cell is then attached to a
battery so as to allow a current of electricity to pass through it,
and the minium is thereby reduced to metallic spongy lead on the
negative pole, and oxidized to peroxide of lead on the positive
pole; when the cell is discharged the reduced lead becomes
oxidized, and the peroxide of lead is reduced until the cell
becomes inert.

The improvement consists, as will be seen, in substituting for
strips of lead masses of spongy lead; for, in the Planté
cell, the action is restricted to the surface, while in Faure’s
modification the action is almost unlimited. A battery composed of
Faure’s cells, and weighing 150 lb., is capable of storing up a
quantity of electricity equivalent to one horsepower during one
hour, and calculations based on facts in thermal chemistry show
that this weight could be greatly decreased. A battery of 24 cells,
each weighing 14 lb., will keep a strip of platinum five-eighths of
an inch wide, one-thirty-second of an inch thick, and 9 ft. 10 in.
long, red-hot for a long time.

The loss resulting from the charging and discharging of this
battery is not great; for example, if a certain quantity of energy
is expended in charging the cells, 80 per cent. of that energy can
be reproduced by the electricity resulting from the discharge of
the cells; moreover, the battery can be carried from one place to
another without injury. A battery was lately charged in Paris, then
taken to Brussels, where it was used the next day without
recharging. The cost is also said to be very low. A quantity of
electricity equal to one horse power during an hour can be
produced, stored, and delivered at any distance within 3 miles of
the works for 1½d. Therefore these batteries may become
useful in producing the electric light in private houses. A 1,250
horsepower engine, working dynamo-machines giving a continuous
current, will in one hour produce 1,000 horse-power of effective
electricity, that is to say 80 per cent. of the initial force. The
cost of the machines, establishment, and construction will not be
more than £40,000, and the quantity of coal burnt will be 2
lb. per hour per effective horse-power, which will cost (say)
½d. The apparatus necessary to store up the force of 1,000
horses for twenty-four hours will cost £48,000, and will
weigh 1,500 tons. This price and these weights may become much less
after a time. The expense for wages and repairs will be less than
¼d. per hour per horse-power, which would be £24 a
day, or £8,800 a year; thus the total cost of one horse-power
for an hour stored up at the works is ¾d. Allowing that the
carriage will cost as much as the production and storing, we have
what is stated above, viz., that the total cost within 3 miles of
the works is 1½d. per horse-power per hour. This quantity of
electricity will produce a light, according to the amount of
division, equivalent to from 5 to 30 gas burners, which is much
cheaper than gas.–Chemical News.

PHYSICAL SCIENCE IN OUR COMMON SCHOOLS.

[Footnote: Read before the State Normal Institute at Winona,
Minnesota, April 28, 1881, by Clarence M. Boutelle, Professor of
Mathematics and Physical Science in the State Normal School.]

Very little, perhaps, which is new can be said regarding the
teaching of physical science by the experimental method. Special
schools for scientific education, with large and costly
laboratories, are by no means few nor poorly attended; scientific
books and periodicals are widely read; scientific lectures are
popular. But, while in many schools of advanced grade, science is
taught in a scientific way, in many others the work is confined to
the mere study of books, and in only a few of our common district
schools is it taught at all.

I shall advocate, and I believe with good reason, the use of
apparatus and experiments to supplement the knowledge gained from
books in schools where books are used, the giving of lessons to
younger children who do not use books, and the giving of these
lessons to some extent in all our schools. And the facts which I
have gathered together regarding the teaching of science will be
used with all these ends in view.

Physics–using the term in its broadest sense–has been defined
as the science which has for its object the study of the material
world, the phenomena which it presents to us, the laws which govern
(or account for) these phenomena, and the applications which can be
made of either classes of related phenomena, or of laws, to the
wants of man. Thus broadly defined, physics would be one of two
great subjects covering the whole domain of knowledge. The entire
world of matter, as distinguished from the world of mind, would be
presented to us in a comprehensive study of physics.

I shall consider in this discussion only a limited part of this
great subject. Phenomena modified by the action of the vital force,
either in plants or in animals, will be excluded; I shall not,
therefore, consider such subjects as botany or zoölogy.
Geology and related branches will also be omitted by restricting
our study to phenomena which take place in short, definite,
measurable periods of time. And lastly, those subjects in which, as
in astronomy, the phenomena take place beyond the control of
student and teacher, and in which their repetition at pleasure is
impossible, will not be considered. Natural philosophy, or physics,
as this term is generally used, and chemistry, will, therefore, be
the subjects which we will consider as sources from which to draw
matter for lessons for the children in our schools.

The child’s mind has the receptive side, the sensibility, the
most prominent. His senses are alert. He handles and examines
objects about him. He sees more, and he learns more from the
seeing, than he will in later years unless his perceptive powers
are definitely trained and observation made a habit. His judgment
and his will are weak. He reasons imperfectly. He chooses without
appropriate motives. He needs the building up and development given
by educational training. Nature points out the method.

Sensibility being the characteristic of his mind, we must appeal
to him through his senses. We must use the concrete; through it we
must act upon his weak will and immature judgment. From his natural
curiosity we must develop attention. His naturally strong
perceptive powers must be made yet stronger; they must be led in
proper directions and fixed upon appropriate objects. He must be
led to appreciate the relation between cause and effects–to
associate together related facts–and to state what he knows in a
definite, clear, and forcible manner.

Object lessons, conversational lessons, lessons on animals,
lessons based on pictures and other devices, have been used to meet
this demand of the child’s mental make up. Good in many respects,
and vastly better than mere book work, they have faults which I
shall point out in connection with the corresponding advantages of
easy lessons in the elements of science. I shall not quibble over
definitions. Object lessons may, perhaps, properly be said to
include lessons such as it seems to me should be given–lessons
drawn from natural philosophy or chemistry–but I use the term here
in the sense in which it is often used, as meaning lessons based
upon some object. A thimble, a knife, a watch, for instance, each
of these being a favorite with a certain class of object teachers,
may be taken.

The objections are:

1. Little new knowledge can be given which is simple and
appropriate. Most children already know the names of such objects
as are chosen, the names of the most prominent parts, the materials
of which they are composed and their uses. Much that is often given
should be omitted altogether if we fairly regard the economy of the
child’s time and mental strength. It doesn’t pay to teach children
that which isn’t worth remembering, and which we don’t care to have
them remember.

2. Study of the qualities of materials is a prominent part of
lessons on objects. Such study is really the study of physical
science, but with objects such as are usually selected is a very
difficult part to give to young children. Ask the student who has
taken a course in chemistry whether the study of the qualities of
metals and their alloys is easy work. Ask him how much can readily
be shown, and how much must be taken on authority. Have him tell
you how much or how little the thing itself suggests, and how much
must he memorized from the mere book statement and with difficulty.
Study of materials is good to a certain extent, but it is often
carried much too far.

Consider a conversational lesson on some animal. Lessons are
sometimes given on cats. As an element in a reading lesson–to
arouse interest–to hold the attention–to secure correct emphasis
and inflection–to make sure of the reading being good: such work
is appropriate. But let us see what the effect upon the pupil is as
regards the knowledge he gains of the cat, and the effect upon his
habits of thought and study. The student gives some statement as to
the appearance–the size–or some act of his cat. It is usually an
imperfect statement drawn from the imperfect memory of an imperfect
observation. And the teacher, having only a general
knowledge of the habits of cats, can correct in only a general
way. Thus habits of faulty and incorrect observation and inaccurate
memory are fastened upon the child. It is no less by the correction
of the false than by the presenting of the true, that we educate
properly.

Besides this there is the fact that traits, habits, and
peculiarities of animals are not always manifested when we wish
them to be. Suppose a teacher asks a child to notice the way in
which a dog drinks, for example; the child may have to wait until
long after all the associated facts, the reasons why this thing was
to be observed–the lesson as a whole of which this formed a
part–have all grown dim in the memory, before the chance for the
observation occurs.

Pictures are less valuable as educational aids than objects; at
best they are but partially and imperfectly concrete. The study of
pictures tends to cultivate the imagination and taste, but
observation and judgment are but little exercised.

A comparison of the kind of knowledge gained in either of the
above ways with that gained by a study of science as such, will
make some of the advantages of the latter evident. An act of
complete knowledge consists in the identifying of an attribute with
a subject. Attributes of quality–of condition–of relation, may be
gained from lessons in which objects or pictures are used.
Attributes of action which are unregulated by the observer may be
learned from the study of animals. But very little of actions and
changes which can be made to take place under specified conditions,
and with uniformity of result, can be learned until physical
science is drawn upon.

And yet consider the importance of such study. Changes around
him appeal most strongly to the child. “Why does this thing
do as it does?” is more frequent than “Why is
this thing as it is?” He sees changes of place, of form, of
size, of composition, taking place; his curiosity is aroused; and
he is ready to study with avidity, and in a systematic manner, the
changes which his teacher may present to him. Consider the
peculiarities belonging to the study of changes of any sort. The
interest is held, for the mind is constantly gaining the new. The
attention cannot be divided–all parts of the change, all phases of
the action, must be known, and to be known must be observed;
while in other forms of lessons the attention may be diverted for a
moment to return to the consideration of exactly what was being
observed before. It goes without saying that in one case quick and
accurate observation, a retentive memory, and the association of
causes and effects follow, and that in the other they do not.

I advocate, therefore, the teaching of physical science in our
schools–in all our schools. Physical science taught by the
experimental method.

An experiment has been defined as a question put to Nature, a
question asked in things rather than in words, and so
conditioned that no uncertain answer can be given. Nature says that
all matter gravitates, not in words, but in the swing of planets
around the sun, and in the leap of the avalanche. And men have
devised ingenious machines through which Nature may tell us the
invariable laws of gravitation, and give some hint as to why it is
true.

There are two kinds of experiments, and two corresponding kinds
of investigators.

I. In original investigation there are the following
elements:

1. The careful determination of all the conditions under which
the experiment takes place.

2. The observation of exactly what happens, with a painstaking
elimination of all previous notions as to what ought to happen.

3. The change of conditions, one at a time, with a comparison of
the results obtained with the changes made, in order to determine
that each condition has been given just its appropriate weight in
the experiment.

4. The classification and explanation of the result.

5. The extension of the knowledge gained by turning it to
investigations suggested by what has already been learned.

6. The practical application of the knowledge gained.

II. In ordinary experiments for educational purposes the
experimenter follows in a general way in the footsteps of the
original investigator. There are the following elements to be
considered:

1. The arrangement of conditions in general imitation of the
original investigator. This arrangement needs only to be general.
For example, if an original investigation were undertaken to
determine the composition of a metallic oxide, the metal and the
oxygen would both be carefully saved to be measured and weighed and
fully tested. The ordinary experiment would be considered
successful if oxygen and the metal were shown to result.

2. The careful consideration of what should happen.

3 The determination that the expected either does or does not
happen, with examination of reasons and elimination of disturbing
causes in the latter case.

4. The accepting as true of the classification and explanation
already given. Theories, explanations, and laws are thus accepted
every day by minds which could never have originated either them or
the experiments from which they were derived.

The method of original investigation, strictly considered,
presents many difficulties. A long course of preliminary
training–a thorough knowledge of what has been done in a given
field already–a quick imagination–a genius for devising forms of
apparatus which will enable him to work well under particular
conditions in the most simple and effective way–the faculty of
suspending judgment, and of seeing what happens, all that happens,
and just how it happens–patience–caution–courage–quick judgment
when a completed experiment presses for an explanation–these are
some of the characteristics which must belong to the original
worker.

Were we all capable of doing such work there would be these
advantages, among others, of studying for ourselves:

1. What we find out for ourselves we remember longer and recall
more readily than what we acquire in any other way. This advantage
holds true whether the facts learned are entirely new or only new
to us. Almost every man whose life has been spent in study has a
store of facts which he discovered, and on which he built hopes of
future greatness until he found out later that they were old to the
knowledge of the world he lived in. And these things are among
those which will remain longest in his memory.

2. Associated facts would be learned in studying in this way
which would remain unknown otherwise.

But all the advantages would be associated with disadvantages
too. Long periods of time would have to be given for comparatively
small results. The history of science is full of instances in which
years were spent in the elaboration of some law, or principle, or
theory which the school boy of to-day learns in an hour and recites
in a breath. Why does water rise in a pump? Do all bodies, large
and small, fall equally fast? The principles which answer and
explain such questions can be made so clear and evident to the mind
of a pupil that he would almost fancy they must have been known
from the first instead of having waited for the hard, earnest labor
of intellectual giants. And science has gone on, and for us and for
our pupils would still go on, only as accompanied with numerous
mistakes and disappointments.

What method shall we adopt in the teaching of science? It must
differ according to the age and capacity of the pupils. An
excellent modification of the method of original investigation may
be arranged as follows:

The children are put in possession of all facts relating to
conditions, the teacher explaining them as much as may be
necessary. The experiment is performed, the pupils being required
to observe exactly what takes place, the experiments selected being
of such a nature that any previous judgment as to what ought to
occur is as nearly impossible as may be. We predict from knowledge,
real or supposed, of facts which are associated in our minds with
any new subject under consideration. Children often know in a
general, vague, and indefinite way that which, for the sake of a
full and systematic knowledge, we may desire them to study. What
they know will unconsciously modify their expectations, and their
expectations in turn may modify their observations. We are apt to
believe that happens which we expect will happen. There ought to be
no difficulty, however, in finding simple and appropriate
experiments with which the child is entirely unacquainted, and in
which anything beyond the wildest guess work is, for him,
impossible. The principal use which can be made of this method is
in the mere observation of what takes place. Nothing which the
child notices correctly need be rejected, no matter how far removed
from the chief event on the object of the experiment. Care that the
pupil shall see all, and separate the essential from the
accidental, is all that is necessary.

But the original investigator assigns reasons, and with care the
children may be allowed to attempt that. This, however, should not
be carried far; incorrect explanations should be criticised; and
the class should at length be given all the elements of the correct
explanation which they have not determined for themselves. Later,
pupils should be encouraged to name related phenomena, to mention
things which they have seen happen which are due to associated
causes, and to suggest variations for the experiment and tests for
its explanation. Good results may be made to follow this kind of
work even with very young pupils. A child grows in mental strength
by using the powers he has, and mistakes seen to be such are not
only steps toward a correct view of the subject under
consideration, but are steps toward that habit of mind which
spontaneously presents correct views at once in study which comes
later in life.

Another method is this: The pupil may know what is expected to
happen, as well as the conditions given, and held responsible for
an observation of what does happen and a comparison of what he
really observes with what he expects to observe. Explanations are
usually given a class, often in books with which they are
furnished, instead of being drawn from them, in whole or in part,
by questioning, when physical science is studied in this way.
Indeed, this method is a necessity when text books are used, unless
experiments from some outside source are introduced.

Who shall perform the experiments? With young pupils everywhere,
and in most of our common, and even in many of our graded schools,
the experiments must be performed by the teacher. With young pupils
the time is too limited, and the responsibility and necessary care
too great to permit of any other plan being practical. In many of
our schools the small supply of apparatus renders this necessary
even with larger pupils. Added to the reasons already given is the
important one that in no other way–by no other plan–can the
teacher be as readily sure that his pupils observe and reason fully
for themselves. In this normal school a course in physics, in which
the experiments are all performed in the class room by the teacher,
is followed by a course in chemistry, in which the members of the
class perform the experiments for themselves in the laboratory.
And, notwithstanding the age, maturity, and previous observation of
the pupils, a great deal must be done both in the laboratory and in
the recitation room to be sure that all that happens is seen–that
the purpose is clearly held in the mind–that the reason is fully
understood.

With older pupils and greater facilities, however, the
experiments should be performed by the pupils themselves. Constant
watchfulness is necessary, it is true, to insure to the pupil the
full educational value of the experiment. With this watchfulness it
can be done, and the advantages are numerous. Among them are:

1. The learning of the use and care of apparatus.

2. The learning of methods of actual construction, from
materials at hand, of some of the simpler kinds of apparatus.

3. The learning of the importance of careful preparation. An
experiment may be performed in a few minutes before a class which
has taken an hour or more of time in its preparation. The pupil
fully appreciates its importance, and is in the best condition to
remember it only when he has had a part of the hard work attending
that preparation. Again, conditions under which an experiment is
successfully performed are often not appreciated when merely stated
in words. “To prepare hydrogen gas, pass a thistle tube and a
delivery tube through a cork which fit tightly in the neck of a
bottle,” etc., is simple enough. Let a pupil try with a cork which
does not fit tightly and he will never forget that condition.

4. The learning of the importance of following directions.
Chemistry, especially, is full of those cases where this means
everything. Sometimes, not often in experiments performed in
school, however, it may mean even life or death.

The time for experiments should be carefully considered. When
performed by the teacher they should be taken up during the
recitation:

1. If used as a foundation to build upon, at the beginning of
the lesson.

2. If used as a summary, at the close.

3. They should be closely connected with the points which they
illustrate.

4. When very short, or when so difficult as to demand the whole
attention of the teacher, they may be given and afterward
discussed. If long or easy, they may be discussed while the work is
going on. Changes which take place slowly, as those which are
brought about by the gradual action of heat, for instance, are best
taken up in this latter way.

5. Exceptions may be necessary, as when experiments which demand
special preparation immediately before they are presented are given
when the recitation begins, or cases in which experiments are kept
until near the close of a recitation, when the teacher finds that
attention flags and the lesson seems to have lost its interest to
the pupils as soon as the experiments have been given.

When performed by the pupils themselves, experiments should come
before the recitation as a part of the preparation for the work of
the class room.

Even in those cases in which the teacher performs the work,
opportunity should be given, from time to time, for the performing
of the experiment by the pupils themselves. This can be done in
several ways. During the course in physics here I am in the habit
of leaving apparatus on the table in my room for at least one day,
often for a longer time, and of giving permission to my class to
perform the experiments for themselves when their time permits and
the nature of the experiment makes it an advantage to get a nearer
view than was possible in the class work. I leave it to them to
decide when to perform the experiments, or whether it is to their
advantage to take the time to perform them at all. I make no
attempt to watch either pupils or apparatus, although I would often
assist or explain at intermissions or during the afternoon. The
apparatus was largely used, and the effect on recitations was a
good one. For advanced pupils, and those who can be fully trusted,
the plan is a good one. The only question is the safety of the
apparatus; each teacher can decide for himself regarding the
advisability of the plan for his own school.

With smaller pupils their own safety may render it best to keep
apparatus out of their hands, except under the immediate direction
of the teacher. With all pupils that is, doubtless, the best plan
where chemicals are concerned.

Another method is to allow pupils to assist the teacher in the
preparation of experiments, to call occasionally upon members of
the class to come forward and give the experiment in the place of
the teacher, and to encourage home work relating to experiments.
This latter is often spontaneous on the part of older pupils, and
can be brought about with the smaller ones by the use of a little
tact; many of the toys of the present day have some scientific
principle at bottom; let the teacher find out what toys his young
pupils have, and encourage them to use them in a scientific
way.

In whatever ways experiments be used, the class should be made
to consider the following elements as important in every case:

1. The purpose of the experiment. The same experiment may be
performed at one time for one purpose, at another time for another.
The purpose intended should be made the prominent thing, all others
being subordinated to it. Many chemical reactions, for instance,
can be made to yield either one of two or more substances for study
or examination, or use, while it may be the purpose of the
experiment to close only one of them.

2 The apparatus. All elements should be considered. The
necessary should be separated from that which may vary. In cases
where the various parts must have some definite relation to the
others as regards size or position, all that should be considered
with care. In complex apparatus the exact office of each part
should be understood.

3. A clear understanding of what happens. To this I have already
referred.

4. Why it happens.

5. In what other way it might be made to happen. In chemistry
almost every substance can be prepared in several different ways.
The common method is in most cases made so by some consideration of
convenience, cheapness, or safety. Often only one method is
considered in one place in a text book. In a review, however,
several methods can be associated together. Tests, uses, etc., will
vary, too, and should be studied with that fact in view. In physics
phenomena illustrating a given principle can usually be made to
take place in several different ways. Often very simple apparatus
will do to illustrate some fact for which complex and costly
apparatus would be convenient. In such case the study of the
experiment with that fact in view becomes important to us who need
to simplify apparatus as much as possible.

6. Special precautions which may be necessary. Some experiments
always work well, even in the hands of those not used to the work.
Others are successful–sometimes safe, even–only when the greatest
care is taken. Substances are used constantly in work in chemistry
which are deadly poisons, others which are gaseous and will pass
through the smallest holes. In physics the experiments usually
present fewer difficulties of this sort. But special care is
necessary to complete success here.

7. Other things shown by the experiment. While the main object
should be kept in most prominent view in all experimental work, the
fullest educational value will come only when all that can be
learned by the use of an experiment is carefully considered.

In selecting just the work to be taken up with a given class of
children, attention must be paid to the selection of the
appropriate matter to be presented and the well adapted method of
presenting it. The following points should be carefully
considered:

1. The matter must be adapted to the capacity of the child. This
must be true both as regards the quality and the quantity. The
tendency will be to teach too much when the matter presented is
entirely new, but too little in many cases where the pupil already
knows the subject in a general way. Matter is valuable only when
given slowly enough to permit of its being fully understood and
memorized, while on the other hand method is valuable only when it
secures the development of attention and the various faculties of
the child’s mind by presenting a sufficient amount of the new.

2. The work must be based on what is already known. This, one of
the best known of the principles of teaching, is of at least as
great importance in physical science as in any other department of
knowledge. It seems to me in many cases to be more important here
than elsewhere. It is not necessary to reach each point by passing
over every other point usually considered. Lessons in electricity
or sound, for instance, can be given to children who have done
nothing with other parts of science. But a natural beginning must
be made, and an orderly sequence of lessons adopted. Children will
not do what adults would find almost impossible in covering gaps
between lessons.

Science may be compared to a great temple. Pillars, each built
of many curiously joined stones, standing at the very entrance,
represent the departments of science so far as man has studied
them. We need not dig down and study the foundations with the
children; we need not study every pillar nor choose any particular
one rather than some other; but we must learn something of every
stone–of each great fact–in the pillar we select, be it ever so
little. The original investigator climbs to stones never before
reached, or boldly ventures away into the dim recesses beyond the
entrance to bring back hints of what may be known and believed a
hundred years hence, perhaps. The exact investigator measures each
stone. Patiently and toilsomely scientific men examine them with
glass and reagent. We need not do this, but we must omit none of
the stones.

3. The work must be continuous. To continue the figure, the
stones must be considered in some regular order. One lesson in
electricity, one in sound, then one in some other department is
injurious. We remember best by associated facts, and, while with
the child this is less so than with the man, one great object of
this work is to teach him to remember in that way.

4. Experiments should never be performed for mere show. Of two
experiments which illustrate a fact equally well it is often best
to select the most striking and brilliant one. The attention and
interest of the child will be gained in this way when they would
not be to so great an extent in any other. The point of the
experiment, however, should never be lost sight of in attention to
the merely wonderful in it.

With older pupils, and especially with those who use books for
themselves and perform the experiments there considered, the fact
that experiments demand work, downright hard work, with care, and
patience, and perseverance, and courage, cannot be kept too
prominently before them.

5. Every lesson should have a definite object. Not the general
value of the experiment, but some one thing which it shows
should be the object considered.

6. Each experiment should be associated with some truth
expressed in words. The experiment should be remembered in
connection with a definite statement in each case. The memory of
either the experiment, or the principle apart from the experiment,
is a species of half knowledge which should be avoided. An
unillustrated principle must, when the necessity arises, be stored
in the memory; and in the systematic study of books this necessity
will often come. But we should never crowd this abstract work on
the memory unassisted by the suggestive concrete, when the concrete
aid is possible.

7. All that is taught should be true. It is not necessary to
attempt to exhaust a subject, nor to attempt to teach minute
details regarding it to the pupils in our schools, but it is
necessary that every statement given to the pupil to be learned and
remembered should contain no element of falsehood.

The student in mathematics experiences a feeling of growing
strength and power when he finds, in algebra, that the formula he
used in arithmetic in extracting a square root has grown in
importance by leading indirectly to a theorem of which it is only
one particular case–a theorem with a more definite proof, and a
larger capability for use than he had thought possible. When he
finds a still simpler proof for the binomial theorem in his study
of the calculus, his feeling of increasing power and the desire for
still greater results deepens and intensifies. Were he to find, on
the contrary, that from a false notion of the means to be used in
making a thing simple, his teacher in arithmetic had taught him
what is false, we should approve his feeling of disgust and
disappointment. Early impressions are the most lasting, and the
hardest part of school work for the teacher is the unteaching of
false ideas, and the correcting of imperfectly formed and partially
understood ideas. I took a case from mathematics, the exact
science, to illustrate this point. But I must not neglect to notice
the difference between that subject and physical science. The
latter consists of theories, hypotheses, and so-called laws,
supported by observed facts. The facts remain, but time has
overthrown many of the hypotheses and theories, and it will
doubtless overthrow more and give us something better and truer in
their place. While a careful distinction between what is known and
what is believed is necessary, I should always class the teaching
of accepted theories and hypotheses with the teaching of the
true.

But teachers, with more of imagination than good sense, teach
distinctions which do not exist, generalizations which do not
generalize, and do incalculable mischief by so doing.

8. Experimental work should be thoroughly honest as to
conditions and results. If an experiment is not the success you
expected it would be, say so honestly, and if you know why, explain
it. The pupil should be taught to know just what is, theory
or expectation to the contrary notwithstanding. Discoveries in
physical science have often originated in a search for the reason
for some unexpected thing.

The relation of the study of science to books on science should
be considered. For the work done with pupils before they are given
books to use for themselves, any attempt to follow a text book is
to be deplored. The study of the properties of matter, for
instance, would be a fearful and wonderful thing to set a class of
little ones at as a beginning in scientific work. Just what matter,
and force, and molecules, and atoms are may be well enough for the
student who is old enough to begin to use a book, but they would be
but dry husks to a younger child. Many of the careful
classifications and analyses of topics in text books had far better
be used as summaries than in any other way; and a definition is
better when the pupil knows it is true than when he is about to
find out whether it is or not.

An ideal course in science would be one in which nothing should
be learned but that found out by the observation of the pupil
himself under the guidance of the teacher, necessary terms being
given, but only when the thing to be named had been considered, and
the mind demanded the term because of a felt need. Practically such
a method is impossible in its fullest sense, but a closer approach
to it will be an advantage.

Among the numerous good results which will follow the study of
physical science are the following:

1. The cultivation of all the faculties of the child in a
natural order, thus making him grow into a ready, quick, and
observing man. Education in schools is too often shaped so as to
repress instead of cultivate the instinctive desire for the
knowledge of things which is found in every child.

2. The mechanical skill which comes from the preparation and use
of apparatus.

3. The ability to follow directions.

4. The belief in stated scientific facts, the understanding of
descriptions, diagrams, etc.

5. The habitual scientific use of events which happen around
us.

6. The study of the old to find the new. The principle of the
telephone, for instance, is as old as spoken language. The mere[1]
pulses in the air–carrying all the characteristics of what you
say–may set in vibration either the drum of my ear, or a disk of
metal. How simple–and how simple all true science is–when we
understand it.

[Transcribers note 1: corrected from ‘more’]

8. The cultivation of the scientific judgment, and the inventive
powers of the mind. One great original investigator, made such by
the direction given his mind in one of our common schools, would be
cheaply bought at the price of all that the study of science in our
schools will cost for the next quarter of a century.

8. Honesty. If there is a study whose every tendency is more in
the direction of honesty and truthfulness–both with ourselves and
with others–than is the study of experimental science, I do not
know what it is.

Physical science, then, will help in making men and women out of
our boys and girls. It is worthy of a fair, earnest trial
everywhere.

A few minutes each day in which a class or a school study
science in some of the ways I have indicated will give a knowledge
at the end of a term or a year of no mean value. The time thus
spent will have rested the pupils from their books, to which they
will return refreshed, and instead of being time lost from other
study the work will have been made enough more earnest and intense
to make it again.

Apparatus for illustrating many of the ordinary facts of physics
can be devised from materials always at hand. Many more can be made
by any one skilled in the use of tools. In chemistry, the
simplicity of the apparatus, and comparative cheapness of ordinary
chemicals, make the use of a large number of beautiful and
instructive experiments both easy and cheap.

A nation is what its trades and manufactures–its inventions and
discoveries–make it; and these depend on its trained scientific
men. Boys become men. Their growing minds are waiting for what I
urge you to offer. Science has never advanced without carrying
practical civilization with it–but it has never truly advanced
save by the use of the experimental method. And it never
will.

Let us then look forward to the time when our boys and young
men–our girls and young women–shall extend the boundaries of
human knowledge by its use, fitted so to do by what we may have
done for them.

GEOGRAPHICAL SOCIETY OF THE PACIFIC.

This society is a recent organization, the objects of which are
to encourage geographical exploration and discovery; to investigate
and disseminate geographical information by discussion, lectures,
and publications; to establish in this, the chief maritime city of
the Western States, for the benefit of commerce, navigation, and
the industrial and material interests of the Pacific slope, a place
where the means will be afforded of obtaining accurate information
not only of the countries bordering on the Pacific ocean, but of
every part of the habitable globe; to accumulate a library of the
best books on geography, history, and statistics; to make a
collection of the most recent maps and charts–especially those
which relate to the Pacific coast, the islands of the Pacific and
the Pacific ocean–and to enter into correspondence with scientific
and learned societies whose objects include or sympathize with
geography.

The society will publish a bulletin and an annual journal, which
will interchange with geographical and other societies. Monthly
meetings are to be held, at which original papers will be read or
lectures be given; and to which, as well as to the entertainments
to distinguished travelers, to the conversazioni, and to the
informal evenings, the fellows of the society will have the
privilege of introducing their friends. The initiation fee to the
society is $10; monthly dues $1; life fellowship $100.

At a meeting held at the Palace Hotel on the 12th May, the
following gentlemen were elected for the ensuing year: President,
Geo. Davidson; Vice-Presidents, Hon. Ogden Hoffman, Wm. Lane
Booker, H.B.M. Consul, and John R. Jarboe; Foreign Corresponding
Sec., Francis Berton; Home Cor. Sec., James P. Cox; Treas., Gen. C.
I. Hutchinson; Sec’y, C. Mitchell Grant, F.R.G.S. The council is
composed of the following: Hon. Joseph W. Winans, Hon. J.F.
Sullivan, Ralph C. Harrison, A.S. Hallidie, Thos. E. Stevin,
F.A.G.S., W.W. Crane, Jr., W.J. Shaw, C.P. Murphy, Thos. Brice,
Edward L.G. Steele, Gerrit L. Lansing, Joseph D. Redding. The
Trustees are Geo. Davidson, Wm. Lane Booker, Hon. Jno. S. Hager,
Geo. Chismore, M.D., Selim Franklin.

THE BEHRING’S STRAITS CURRENTS.

It will be remembered that a short time since we mentioned the
fact that W.H. Dall, of the U. S. Coast Survey, who has passed a
number of years in Alaskan waters, on Coast Survey duty, denied the
existence of any branch of the Kuro Shiwo, or Japanese warm stream,
in Behring’s Straits. That is, he failed to find evidence of the
existence of any such current, although he had made careful
observations. At the islands in Behring’s Straits, his vessel had
sailed in opposite directions with ebb and flood tide, and he
thought the only currents there were tidal in their nature. The
existence or non-existence of this current is an important point in
Arctic research on this side of the continent.

At the last meeting of the Academy of Sciences, Prof. Davidson,
of the U. S. Coast Survey, author of the “Alaska Coast Pilot,”
refuted Dr. Dall’s opinion of the non-existence of a branch of the
Kuro Shiwo, or Japanese warm stream, from the north Pacific into
the Arctic Ocean, through Behring’s Straits. He said that in 1857
he gave to the Academy his own observations, and recently he had
conferred with Capt. C.L. Hooper, who commanded the U. S. steamer
Thomas Corwin, employed as a revenue steam cruiser in the Arctic
and around the coast of Alaska. Capt. Hooper confirms the opinions
of all previous navigators, every one of which, except Dr. Dall,
say that a branch of this warm stream passed northward into the
Arctic through Behring’s Strait. It is partly deflected by St.
Lawrence Island, and closely follows the coast on the Alaskan side,
while a cold current comes out south, past East Cape in Siberia,
skirting the Asiatic shore past Kamschatka, and thence continues
down the coast of China. He said ice often extended several miles
seaward, from East Cape on the Asiatic side of Behring Strait,
making what seamen call a false cape, and indicating cold water,
while no such formation makes off on the American side, where the
water is 12 degrees warmer than on the Asiatic shore off the
Diomede islands, situated in the middle of Behring’s Strait, the
current varies in intensity according to the wind.

Frequently it is almost nothing for several days, when after a
series of southerly winds the shallow Arctic basin has been filled,
under a heavy pressure, with an unusual volume of water, and a
sudden change to northerly winds, makes even a small current
setting southward for a few days, just as at times the surface
currents set out our Golden Gate continuously for 24 and 48 hours,
as shown by the United States Coast Survey tide gauges. Whalers
report that the incoming water then flows in, under the temporary
outflowing stream.

Old trees, of a variety known to grow in tropical Japan, are
floated into the Arctic basin as far as past Point Barrow, on the
American side, but none are found on the Asiatic side, or near
Wrangell Land, where a cold stream exists, and ice remains late in
the season. On the northern side of the Aleutian islands are found
cocoanut husks and other tropical productions stranded along the
beaches. The American coast of Alaska has a much warmer climate
than the Asiatic coast of Siberia, and the American timber line
extends very far north. The ice opens early in the season on the
American side, and invariably late on the Asiatic.

Capt. C. L. Hooper says that when just north of Behring’s
Strait, off the American coast, in the Arctic basin, the U.S.
steamer Thomas Corwin, when becalmed for 24 hours, drifted 40 miles
to the northward. From all these, and other facts, and the
unanimous testimony of American whalemen, who have for years spent
many months annually in the Arctic, and from his own observations,
he argued that a branch of the Kuro-Shiwo or Japanese warm stream,
unquestionably runs northward through Behring’s Strait into the
Arctic basin along the northwestern coast of Alaska.

Prof. Davidson then called to mind the testimony in regard to
the existence of Plover Island, between Herald Island and Wrangell
Land, which he said was first made public through this academy. The
evidence of Capts. Williams and Thomas Long were recited and highly
praised. One of the officers of Admiral Rodgers’ expedition climbed
to near the top of Herald Island, at a time of great refraction,
when probably a false horizon existed, and hence did not see Plover
Island, although Wrangell Land was in sight.

Prof. Davidson thinks all the authorities are against Dr. Dall,
who attributes the warm current he observed on the American coast
to water from the Yukon River and to the large expanse of shallow
water exposed to the sun’s rays. As Dall’s observations only
covered a few days of possibly exceptional weather, and the whalers
and Captain Hooper’s cover vastly longer periods, and whalers all
say it is a pretty hard thing to beat southward through Behring’s
Strait, owing to the northerly current setting into the Arctic, we
are forced to the conclusion that Dr. Dall has mistaken the
exception for the rule, and his conclusions are therefore
erroneous. When, in 1824, Wrangell went north, he, like others,
always found broken ice and considerable open water. In 1867, when
Capt. Thomas Long made his memorable survey of the coast of
Wrangell Land, the season was an exceptionally open one, and in
California we had heavy rains, extending into July.

EXPERIMENTAL GEOLOGY.

ARTIFICIAL PRODUCTION OF CALCAREOUS PISOLITES AND OOLITES.

Mr. Stanislas Meunier communicates to Le Nature an
account of some interesting specimens of globular calcareous
matter, resembling pisolites or peastones both in appearance and
structure, which were accidentally formed as follows: The Northern
Railway Company, France, desiring to purify some calciferous water
designed for use in steam boilers, hit upon the ingenious expedient
of treating it with lime water whose concentration was calculated
exactly from the amount of lime held in the liquid to be purified.
The liquids were mixed in a vast reservoir, to which they were led
by parallel pipes, and by which they were given a rapid eddying
motion. The transformation of the bicarbonate into neutral
carbonate of lime being thus effected with the accompaniment of a
circling motion, the insoluble salt which precipitated, instead of
being deposited in an amorphous state, hardened into globules, the
sizes of which were strictly regulated by the velocity of the
currents. Those that have been formed at one and the same operation
are uniform, but those formed at different times vary
greatly–their diameters varying by at least one millimeter to one
and a half centimeters. The surface of the smaller globules is
smooth, but that of the larger ones is rough. Even by the naked
eye, it may be seen that both the large and small globules are
formed of regularly superposed concentric layers. If an extremely
thin section be made through one of them it is found that the
number of layers is very great and that they are remarkably regular
(A). By the microscope, it has been ascertained that each layer is
about 0.007 of a millimeter in thickness.

On observing it under polarized light the calcareous substance
is discovered to be everywhere crystallized, and this suggests the
question whether the carbonate has here taken the form of aragonite
or of calcite. Examination has shown it to be the latter. The
density of the globules (2.58) is similar to that of ordinary
varieties of calcite. It is probable that if the operation were to
take place under the influence of heat, under the conditions above
mentioned, aragonite would be formed. It is hardly necessary to
dwell upon the possible geological applications of this mode of
forming calcareous oolites and pisolites.

ON CRYSTALS OF ANHYDROUS LIME.

Some time ago it was discovered that some limestone, which had
been submitted for eighteen months to a heat of nearly 1,000
degrees in the smelting furnaces of Leroy-Descloges (France), had
given rise to perfectly crystallized anhydrous lime. Figure C shows
three of these crystals magnified 300 diameters. It will be noticed
that they have a striking analogy with grains of common salt. They
are, in fact, cubes (often imperfect), but do not polarize light,
as a substance of the first crystalline system should. However, it
is rarely the case that the crystals do not have some action
on light. Most usually, when the two Nicol prisms are crossed so as
to cause extinction, the crystals present the appearance shown at
D. That is to say, while the central portion is totally inactive
there are seen on the margins zones which greatly brighten the
light.

A and B.–Calcareous Pisolites and Oolites produced
artificially. A.–External aspect and section of a Pisolite.
B.–Details of internal structure as seen by the microscope.

C and D.–Crystals of anhydrous Lime obtained artificially.
C.–Crystals seen under the microscope in the natural light.
D.–Crystals seen under the microscope in polarized light.

The phenomenon is explained by the slow carbonization of the
anhydrous lime under the influence of the air; the external layers
passing to the state of carbonate of lime or Iceland spar, which,
as well known, has great influence on polarized light. This
transformation, which takes place without disturbing the
crystalline state, does not lead to any general modification of the
form of the crystals, and the final product of carbonization is a
cubic form known in mineralogical language as epigene. As
the molecule of spar is entirely different in form from the
molecule of lime, the form of the crystal is not absolutely
preserved, and there are observed on the edges of the epigene
crystal certain grooves which correspond with a loss of substance.
These grooves are quite visible, for example, on the crystal to the
left in Fig. D.

Up to the present time anhydrous lime has been known only in an
amorphous state. The experiment which has produced it in the form
noted above would doubtless give rise to crystallized states of
other earthy oxides likewise, and even of alkalino-earthy
oxides.

COCCIDÆ.

[Footnote: A paper recently read before the California Academy
of Sciences.]

By DR. H. BEHR.

With the exception of Hymenoptera there is no group of insects
that interfere in so many ways in good and evil with our own
interests, as that group of Homoptera called Coccidæ.

But while the Hymenoptera command our respect by an intellect
that approaches the human, the Coccus tribe possesses only the
lowest kind of instinct, and its females even pass the greater part
of their lives in a mere vegetation state, without the power of
locomotion or perception, like a plant, exhibiting only organs of
assimilation and reproduction.

But strange to say, these two groups, otherwise so very
dissimilar, exhibit again a resemblance in their product. Both
produce honey and wax.

It is true, the honey of this tribe is almost exclusively used
by the ants. But I have tasted the honey-like secretion of an
Australian lecanium living; on the leaves of Eucalyptus dumosus;
and the manna mentioned in Scripture is considered the secretion of
Coccus manniparus (Ehrenberg) that feeds on a tamarix, and whose
product is still used by the native tribes round Mount Sinai.

Several species of Coccides are used for the production of wax;
many more, among which the Cochenill, for dyes.

All these substances can be obtained in other ways, even the
Cochenill is to a great extent superseded by aniline dyes, but in
regard to one production, indispensable to a great extent, we are
entirely dependent on some insects of this family; it is the
Shellac, lately also found in the desert regions around the Gila
and Colorado on the Larrea Mexicana. You will remember that
excellent treatise on this variety of Shellac, written by Professor
J.M. Stillman at Berkeley, on its chemical peculiarities.

But all these different forms of utility fall very lightly in
weight, and can not even be counted as an extenuating circumstance,
when we compare them to the enormous evils brought on farmer and
gardener by the hosts of those Coccides that visit plantations,
hothouses, and orchards.

To combat successfully against these insect-pests we have first
to study their habits and then adapt to them our remedies, which
you will see are more effective when well administered than those
which we possess against insect pests of other classes.

I give here only the outlines of their natural history,
peculiarities that are common to all, for it would be impossible to
go into detail. Where there are exceptions of practical importance
I will mention them.

In countries with a well defined winter the winged males appear
as soon as white frosts are no more usual, and copulate with the
unwieldy limbless female, that looks more like a gall or morbid
excrescence, than a living animal. Shortly after the young ones are
perceptible near the withered body of their mother, covered by waxy
secretions that look somewhat like a feathery down.

These young ones are lively enough, they move about with
agility, and it is not till high summer that they fasten themselves
permanently, and lose feet and antennae, organs of locomotion and
perception that are no more of any use to them. (There is a slight
difference in this regard between different genera, as for
instance, Coccus and Dorthesia retain these organs in different
degrees of imperfection, Lecanium and Aspidiotus losing every trace
of them.)

In this limbless, senseless state the females remain fall and
winter. Toward the end of winter these animated galls begin to
swell, and those containing males enter the state of the chrysalis,
from which the males emerge at the beginning of the warm season and
fecundate the gall-like females, which undergo neither chrysalis
state nor any other change, but die, or we may call it dissolve
into their offspring, for there scarcely remains anything of them,
except a pruinous kind of down, after having given birth to the
young ones.

Now we come to the practical deduction from these facts. It is
clear that the only time when the scalebug can emigrate and infest
a new tree is the time when it is a larva, that is, when it has the
power of locomotion. In countries with a pronounced winter this
time begins much later than with us, but it ends about the same
time, that is, the beginning of August. I have seen the male of
Aspidiotus in February, so that the active larva may be expected in
March, and the active Lecanium Hesperidum I have seen last year,
June 27, at Colonel Hooper’s ranch in Sonoma County. We may safely
fix the time of the active scalebug from March to August.

Notwithstanding the agility of the young scalebug, the voyage
from one tree to another, considering the minute size of the
traveler, is an undertaking but seldom succeeding, but one female
bug, if we take into account its enormous fertility, is sufficient
to cover with its grandchildren next year a tree of moderate
size.

Besides there is another and much more effective way of
transmigration by the kind assistance of the ant who colonizes the
scalebug as well for its wax as it colonizes the Aphis for its
honey. Birds on their feathers and the gardener himself on his
dress contribute to spread them.

But even the ant can not transplant the scalebug when it is once
firmly fixed by its rostrum.

It is evident, therefore, that the time for the application of
insecticides is the time when all the scalebugs are fixed, that is
about the end of July or beginning of August. All previous
application will clean the tree or plant only for a time, and does
not prevent a more or less numerous immigration from the
neighboring vegetation, especially if an ant-hill is not far
off.

As to the insecticide, there are to be applied two very
effective ones, each with its advantages and disadvantages.

1. Petroleum and its different preparations.

2. Lye or soap.

The petroleum is the best disinfectant. It can safely be applied
to any cutting or stem, as long as it is not planted, but is one of
the most invidious substances when applied to vegetation in the
garden, or fields. If effectively applied, it can not be prevented
from running down the bark of the tree and entering the ground,
where every drop binds a certain amount of earth to an insoluble
substance, in which state it remains for ever. With every
application the quantity of these insoluble compounds is augmented
and sterility added.

If I am not mistaken, it was near Antwerp–at least I am certain
it was in Belgium–where the first experience of this kind is
recorded.

In France, preparations of coal tar have been recommended and
have been lately used in the form of a paint. May be that in this
form the substance is not so apt to enter into combinations with
the soil. At any rate, the method is of too recent a date to permit
any conclusions about the final result of these applications, as
the invidious nature of the substance produces, by gradual
accumulation, its effects, which are not perceived until they are
irreparable.

2. Lye or soap. The application of these insecticides requires
more care, and is therefore more troublesome. But instead of
attracting fertility from the soil, they add to it. In Southern
Europe soap and water has been for many years the remedy against
the Lecanium Hesperidum. The method applied by the farmers in
Portugal, as described to me by Dr. Bleasdale, is perhaps the most
perfect one. The Portuguese have very well observed that the
colonization of scalebugs always begins at the lowest end of the
trunk and pretend, therefore, that the scalebug comes out of the
ground. This, of course, is not the case, but may their
interpretation be an error, they have been practical enough in
utilizing their observation about the invasion beginning near the
roots. They knead a ring of clay round the tree, in which ring the
soap water runs when they wash the tree, and besides, they fill
frequently the little ditch formed by this ring.

This arrangement of course is only possible in climates of a
rainy summer.

As it is our object to make our knowledge as available as
possible for practical purposes, I repeat for the benefit of
cultivators the advice, without repeating the reasoning:

1. Use the petroleum for disinfecting imported trees and
cuttings:

2. Use soap for cleaning trees planted in your orchard.

3. If you must use the petroleum in your garden, use it in
August, when a single application is sufficient.

AGRICULTURAL ITEMS.

The exportation of dried apples from this country to France has
greatly increased of late years, and now it is said that a large
part of this useful product comes back in the shape of Normandy
cider and light claret.

A.B. Goodsell says in the New York Tribune: “Put your hen
feed around the currants. I did this twice a week during May and
June, and not a currant worm was seen, while every leaf was eaten
off other bushes 150 feet distant, and not so treated.”

Buckwheat may be made profitable upon a piece of rough or newly
cleared ground: No other crop is so effective in mellowing rough,
cloddy land. The seed in northern localities should be sown before
July 12; otherwise early frosts may catch the crops. Grass and
clover may sometimes be sown successfully with buckwheat.

The London News says: “Of all poultry breeding, the rearing of
the goose in favorable situations is said to be the least
troublesome and most profitable. It is not surprising, therefore,
that the trade has of late years been enormously developed. Geese
will live, and, to a certain extent, thrive on the coarsest of
grasses.”

When a cow has a depraved appetite, and chews coarse,
indigestible things, or licks the ground, it indicates indigestion,
and she should have some physic. Give one pint and a half of
linseed oil, one pound of Epsom salts, and afterward give in some
bran one ounce of salt and the same of ground ginger twice a
week.

Asiatic breeds of fowl lay eggs from deep chocolate through
every shade of coffee color, while the Spanish, Hamburg, and
Italian breeds are known for the pure white of the eggshell. A
cross, however remote, with Asiatics, will cause even the
last-named breeds to lay an egg slightly tinted.

In setting out currant bushes care should be exercised not to
place any buds under ground, or they will push out as so many
suckers. Currants are great feeders, and should be highly manured.
To destroy the worm, steep one table-spoonful of hellebore in a
pint of water, and sprinkle the bushes. Two or three sprinklings
are sufficient for one season.

Mr. Joseph Harris, of Rochester, makes a handy box for
protecting melons and cucumbers from insect enemies. Take two
strips of board of the required size, and fasten them together with
a piece of muslin, so the muslin will form the top and two sides of
the box. Then stretch into box form by inserting a small strip of
wood as a brace between the two boards. This makes a good,
serviceable box, and, when done with for the season, it can be
packed into a very small space, by simply removing the brace and
bringing the two board sides together. As there is no patent on the
contrivance, anybody can make the boxes for himself.

Mr. C. S. Read recently said before the London Fanners’ Club:
“American agriculturists get up earlier, are better educated, breed
their stock more scientifically, use more machinery, and generally
bring more brains to bear upon their work than the English farmer.
The practical conclusion is, that if farmers in England worked
hard, lived frugally, were clad as meanly as those of the States,
were content to drink filthy tea three times a day, read more and
hunted less, the majority of them may continue to live in the old
country.”–N. E. Farmer.

TIMBER TREES.

A paper was read by Sir R. Christison at the last meeting of the
Edinburgh Botanical Society upon the “Growth of Wood in 1880.” In a
former paper, he said, he endeavored to show that, in the
unfavorable season of 1879, the growth of wood of all kinds of
trees was materially less than in the comparatively favorable
season of 1878. He had now to state results of measurements of the
same trees for the recent favorable season of 1880. The previous
autumn was unfavorable for the ripening of young wood, and the
trees in an unprepared condition were exposed during a great part
of December, 1879, to an asperity of climate unprecedented in this
latitude. This might have led one to expect a falling off in the
growth of wood, and it appeared, from comparison of measurements,
that, with very few exceptions, the growth of wood last year was
even more below the average of favorable years than that of the bad
year, 1879. Thus, in fifteen leaf-shedding trees of various
species, exclusive of the oak, the average growth of trunk girth in
three successive years was: 1878, 8-10ths; 1879, 45-100ths; 1880,
3-10ths and a half. In four specimens of the oak tribe, the growth
was: 1878, 8-10ths; 1879, 77-100ths; 1880, 54-100ths. In twenty
specimens of the evergreen Pinaceae the growth was: 1878, 8-10ths;
1879, 7-10ths; 1880, 6-10ths and a half. After giving details in
regard to particular trees, Sir Robert stated, as general
deductions from his observations, that leaf-shedding trees,
exclusive of the oak, suffered most; that the evergreen Pinaceae
suffered least; and that there was some power of resistance on the
part of the oak tribe which was remarkable, the power of resistance
of the Hungary oak being particularly deserving of attention. In
another communication on the “extent of the season of growth,” Sir
Robert stated, as the result of observations on five leaf-shedding
and five evergreen trees, that in the case of the former, even in a
fine year, the growth of wood was confined very nearly, if not
entirely, to the months of June, July, and August; while in the
case of the latter growth commenced a month sooner, terminating,
however, about the same time. Mr. A. Buchan said it was proposed
that the inquiry should be taken up more extensively over
Scotland.

BLOOD RAIN.

The sensibilities of ignorant or superstitious people have at
various times been alarmed by the different phenomena of so-called
blood, ink, or sulphur rains. Ehrenberg very patiently collected
records of the most prominent instances of these, and published
them in his treatise on the dust of trade winds. Some, it is known,
are due to soot; others, to pollen of conifers or willows; others,
to the production of fungi and algae.

Many of the tales of the descent of showers of blood from the
clouds which are so common in old chronicles, depends, says Mr.
Berkeley, the mycologist, upon the multitudinous production of
infusorial insects or some of the lower algae. To this category
belongs the phenomenon known under the name of “red snow.” One of
the most peculiar and remarkable form, which is apparently virulent
only in very hot seasons, is caused by the rapid production of
little blood-red spots on cooked vegetables or decaying fungi, so
that provisions which were dressed only the previous day are
covered with a bright scarlet coat, which sometimes penetrates
deeply into their substance. This depends upon the growth of a
little plant which has been referred to the algae, under the name
of Palmellae prodigiosa. The rapidity with which this little
plant spreads over meat and vegetables is quite astonishing, making
them appear precisely as if spotted with arterial blood; and what
increases the illusion is, that there are little detached specks,
exactly as if they had been squirted from a small artery. The
particles of which the substance is composed have an active
molecular motion, but the morphosis of the production has not yet
been properly observed. The color of the so-called “blood rain” is
so beautiful that attempts have been made to use it as a dye, and
with some success; and could the plant be reproduced with any
constancy, there seems little doubt that the color would stand. On
the same paste with the “blood-rain” there have been observed
white, blue, and yellow spots, which were not distinguishable in
structure and character.

TOPICAL MEDICATION IN PHTHISIS.

Dr. G.H. Mackenzie reports in the Lancet an acute case of
phthisis which was successfully treated by him by causing the
patient to respire as continuously as possible, through a
respirator devised for the purpose, an antiseptic atmosphere. The
result obtained appears to bear out the experiments of
Schüller of Greifswald, who found that animals rendered
artificially tuberculous were cured by being made to inhale
creosote water for lengthened periods. Intermittent spraying or
inhaling does not produce the same result. In order to insure
success the application to the lungs must be made
continuously. For this purpose Dr. Mackenzie has used
various volatile antiseptics, such as creosote, carbolic acid, and
thymol. The latter, however, he has discarded as being too
irritating and inefficient. Carbolic acid seems to be absorbed, for
it has been detected freely in the urine after it had been inhaled;
but this does not happen with creosote. As absorption of the
particular drug employed is not necessary, and therefore not to be
desired, Dr. Mackenzie now uses creosote only, either pure or
dissolved in one to three parts of rectified spirits. “Whether,”
says he, “the success so far attained is due to the antidotal
action of creosote and carbolic acid on a specific tubercular
neoplasm, or to their action as preventives of septic poisoning
from the local center in the lungs, it is certain that their
continuous, steady use in the manner just described has a decidedly
curative action in acute phthisis, and is therefore, worthy of an
extended trial.”

ON THE LAW OF AVOGADRO AND AMPERE.

The Scientific American Supplement of May 14,1881, contains,
under this head, Mr. Wm. H. Greene’s objections to my demonstration
(in No. 270 of the same paper) of the error of Avogadro’s
hypothesis. The most important part of my argument is based on the
evidence afforded by the compound cyanogen; and Mr. Greene,
directing his attention to this subject in the first place, states
that because cyanogen combines with hydrogen or with chlorine,
without diminution of volumes, I have concluded that the hypothesis
falls to the ground. This statement has impressed me with the
conviction that Mr. Greene has failed to perceive the difficulty
which is at the bottom of the question, and I will, therefore,
present the subject more fully and comprehensively.

The molecule of any elementary body is, on the ground of the
hypothesis, assumed to be a compound of two atoms, and the molecule
of carbon consequently C₂=24; that of nitrogen
N₂=28. Combination of the two, according to the same
hypothesis, takes place by substitution; the atoms are supposed to
be set free and to exchange places, forming a new compound
different from the original only in this: that each new particle
contains an atom of each of the two different substances, while
each original particle consists of two identical atoms. The product
is, therefore, assumed to be, and can, under the circumstances, be
no other than particles of the composition CN and weight 26. These
particles are molecules, according to the definition laid down,
just as C₂ and N₂; but there is this
essential difference, that the specific gravity of cyanogen gas,
26, coincides with the molecular weight, while the assumed
molecular weight, N₂=28, is twice as great as the
specific gravity of the gas, N=14.

In using the term molecular weight, it is to be remembered that
it does not express the weight of single molecules, but only their
relative weight, millions of millions molecules being contained in
the unit of volume. But on the hypothesis that there is the same
number of molecules in the same volume of any gas, the specific
gravities of gases can be, and are, identified with their molecular
weights, and, on the ground of the hypothesis again, the unit of
the numbers which enter into every chemical reaction and constitute
the molecular weight, is stipulated to be that contained in two
volumes.

The impossibility of the correctness of the hypothesis is now
revealed by the fact just demonstrated, that in the case of
nitrogen the specific gravity does not coincide with the molecular
weight. If equal volumes contain the same number of molecules, the
specific gravities and the molecular weights must be the same; and
if the specific gravities and molecular weights are not the same,
equal volumes cannot contain the same number of molecules. The
assumed molecular weight of nitrogen is twice as great as the
specific gravity, but the molecular weight and the specific gravity
of cyanogen are identical; the number of molecules contained in one
volume of cyanogen must, therefore, necessarily be twice as great
as the number contained in one of nitrogen, and this is fully and
completely borne out by the chemical facts.

In saying that when cyanogen combines with chlorine there is
naturally no condensation, Mr. Greene has no idea that this natural
law is fatal to his artificial law of Avogadro and Ampere; “for,”
continues he, “the theory is fulfilled by the actual reaction.” It
is not. The theory requires two vols. of cyanogen and two vols. of
chlorine, that is, the unit of numbers, to enter into reaction and
to produce two vols. of the compound. But they produce four vols.,
and the non-condensation is therefore in opposition to the theory.
It is true beyond doubt that the molecular weight of cyanogen
chloride is contained in two volumes, in spite of the hypothesis,
not on the ground of it; two vols. + two vols., producing four
vols.; two vols. could, theoretically, contain only half the unit
of numbers, and there seems to be no escape from the following
general conclusions:

1. Two vols. of CNCl, representing the unit of numbers, the
constituent weights, C=12, N=14, Cl=35.5, must each, likewise,
represent the same number; the molecular weight is, therefore,
contained in one vol. of N or Cl, but in two of CNCl and equal
numbers are not contained in equal volumes.

2. The weights N=14, Cl=35.5 occupy in the free state one
volume, but in the combination, CNCl, two volumes; their specific
gravity is, therefore, by chemical action reduced to one half. The
fact thus elicited of the variability and variation of the specific
gravity is of fundamental importance and involves the irrelevancy
of the mathematical demonstration of the hypothesis. In this
demonstration the specific gravity is assumed to be constant, and
this assumption not holding good, and the number of molecules in
unit of volume being reduced to one half when the specific gravity
is reduced to the same extent by chemical action, it is obvious
that the mathematical proof must fail. Mr. Greene states that I
have proceeded to demolish C. Clerk Maxwell’s conclusion from
mathematical reasoning. This is incorrect; I have found no fault
with the conclusion of the celebrated mathematician, and consider
his reasoning unimpeachable. I am also of opinion that he is
entitled to great credit and respect for the prominent part he has
taken in the development of the kinetic theory, and further think
that it was for the chemists to produce the fact of the variability
of the specific gravities, which they would probably not have
failed to do but for the prevalence of Avogadro’s hypothesis, which
is virtually the assertion of the constancy of the specific
gravities.

3. The unit of numbers being represented by Cl=35.5, it is
likewise represented by H=1, and as the product of the union of the
two elements is HCl, 36.5 = two vols., combination takes place by
addition and not by substitution; consequently are

4. The elementary molecules not compounds of atoms? And the
distinction between atoms and molecules is an artificial one, not
justified by the natural facts.

5. Is the molecular weight not in every instance = two
volumes?

These conclusions overthrow all the fundamental assumptions on
which the hypothesis rests, and leave it, in the full meaning of
the term, without support. Though Mr. Greene states that my
arguments are based upon entirely erroneous premises, he has not
even attempted to invalidate a single one of my premises.

As he considers the non-condensation to be natural in the case
of cyanogen and chlorine, the condensation of two vols. of HCl +
two vols. of H₃N to two vols. of NH₄Cl ought
to appear to him unnatural. He, however, contends for it, and
tries, on this solitary occasion, to strengthen his opinion by
authority, though the proof, if it could be given, that ammonium
chloride at the temperature of volatilization is decomposed into
its two constituents, would be insufficient to uphold the
theory.

The ground on which Mr. Greene assumes a partial decomposition
at 350° C. is the slight excess of the observed density (14.43)
over that corresponding to four vols. (13.375). There is, however,
a similar slight excess in the case of the vapor of ammonium
cyanide, the same values being respectively 11.4 and 11; and as
this compound is volatile at 100° C and, at the same time, is
capable to exist at a very high temperature, being formed by the
union of carbon with ammonia, nobody has ever, as far as I am
aware, maintained that it is completely or partially decomposed at
volatilization. The excess of weight not being due, therefore, to
such cause in this case, it cannot be due to it in the other.

The question being whether the molecular weight of ammonium
chloride is two vols. or four vols., an idea of the magnitude of
the assumed decomposition is conveyed by the proportion of the
volume of the decomposed salt to the volume of the non-decomposed,
and Mr. Greene’s quotation of the percentage of weight is
irrelevant and misleading, and his number not even correct. A
mixture containing

has the spec. gr. 193 / 13.375 = 14.43. The proportion in one
vol. of the undecomposed to the decomposed salt is, therefore, as 1
to 11.68 and the percentage of volume of the former 0.0789, and
that of weight 28.22 / 193 = 0.146, and not 0.16.

It is not easy to imagine why a small fraction of the heavy
molecules should be volatilized undecomposed, the temperature being
sufficient to decompose the great bulk. Marignac assumes, indeed,
partial decomposition, but the difficulties which he encountered in
making the experiments, on the results of which his opinion rests,
were so great that he himself accords to the numbers obtained by
him only the value of a rough approximation.

The heat absorbed in volatilization will comprise the heat of
combination as well as of aggregation, if decomposition takes
place, and will therefore be the same as that set free at
combination. Favre and Silbermann found this to be 743.5 at
ordinary temperature, from which Marignac concludes that it would
be 715 for the temperature 350°; he found as the heat of
volatilization 706, but considers the probable exact value to be
between 617 and 818.[1]

[Footnote 1: See Comptes Rendus, t. lxvii., p. 877.]

An uncertainty within so wide a range does not justify the
confidence of Mr. Greene which he expresses in these words: “It is,
therefore, extremely probable that ammonium chloride is almost
entirely dissociated, even at the temperature of volatilization.”
By Boettinger’s apparatus a decomposition may possibly have been
demonstrated, but it remains to be seen whether it is not due to
some special cause.

When Mr. Greene says that the relations between the physical
properties of solids and liquids and their molecular composition
can in no manner affect the laws of gases, nobody is likely to
dissent; but the conclusion that their discussion is foreign to the
question of the number of molecules in unit of volume does by no
means follow. If the specific gravity of a solid or the weight of
unit of volume represents a certain number of molecules, and is
found to occupy two volumes in a compound of the solid with another
solid, the number of molecules in one volume is reduced to one
half. This I have shown to be the case in a number of compounds,
and the decrease of the specific gravity with increase of the
complexity of composition appears to be a general law, as may be
concluded from the very low specific gravity of the most highly
organized compounds, for instance the fatty bodies, the molecules
of which, being composed of very many constituents, are of heavy
weight; and likewise the compounds which occur in combination with
water and without it, the simpler compound having invariably a
greater specific gravity than the one combined with water; for
instance:

and so in every other case. This is now a recurrence of what
takes place in gases, and proves the fallacy of the hypothesis; for
if these compounds could be volatilized the vapor densities would
necessarily vary in the inverse proportion of the degree of
composition.

The reproach that Berthelot has been endeavoring for nearly a
quarter of a century to hold back the progress of scientific
chemistry, is a great and unjustifiable misrepresentation of the
distinguished chemist and member of the Institute of France, who
has done so much for thermo-chemistry, and the more unfortunate as
it seems to serve only the purpose of a prelude to the following
sentences: “But Mr. Vogel cannot claim, as can Mr. Berthelot, any
real work or experiment, however roughly performed, suggested by
the desire to prove the truth of his own views. Let him not, then,
bring forth old and long since explained discrepancies, … but
when he will have discovered new or overlooked facts … chemists
will gladly listen.” … Mr. Greene is here no longer occupied to
investigate whether what I have said concerning Avogadro’s
hypothesis is true or false, but with myself he has become
personal, and in noticing his remarks my sole object is to contend
against an error which is much prevalent. If, according to Mr.
Greene, the real work of science consists in experimenting, and
conclusions unsupported by our own experiments have no value, it
does not appear for what purpose he has published his answer to my
paper; an experiment of his, settling Marignac’s uncertain results,
would have justified the reliance he places on them. The ground he
takes is utterly untenable. Experiments are necessary to establish
facts; without them there could be no science, and the highest
credit is due to those who perform successfully difficult or costly
experiments. Experimenting is, however, not the aim and object of
science, but the means to arrive at the truth; and discoveries
derived from accumulated and generally accepted facts are not the
less valuable on account of not having been derived from new and
special experiment.

It is, further, far from true that the real work of science
consists in experimenting; mental work is not less required, and
the greatest results have not been obtained by experimenters, but
by the mental labor of those who have, from the study of
established facts, arrived at conclusions which the experimenters
had failed to draw. This is naturally so, because a great
generalization must explain all the facts involved, and can be
derived only from their study; but the attention of the
experimenter is necessarily absorbed by the special work he
undertakes. I refer to the three greatest events in science: the
discovery of the Copernican system, the three laws of Kepler, and
Newton’s law of gravitation, none of which is due to direct and
special experimentation. Copernicus was an astronomer, but the
discovery of his system is due chiefly to his study of the
complications of the Ptolemaic system. Kepler is a memorable
witness of what can be accomplished by skillful and persistent
mental labor. “His discoveries were secrets extorted from nature by
the most profound and laborious research.” The discovery of his
third law is said to have occupied him seventeen years. Newton’s
great discovery is likewise the result of mental labor; he was
enabled to accomplish it by means of the laws of Kepler, the laws
of falling bodies established by Galileo, and Picard’s exact
measurement of a degree of a meridian.

If, then, mental work is as indispensable as experimental, it is
not less true that there are men more specially fitted for the one,
others for the other, and the best interests of science will be
served when experiments are made by those specially adapted,
skillful, and favorably situated, and the possibly greatest number
of men, able and willing to do mental work, engage in extracting
from the accumulated treasures of experimental science all the
results which they are capable to yield. Any truth discovered by
this means is clear gain, and saves the waste of time, labor, and
money spent in unnecessary experiment. Mr. Greene’s zeal for
experiment and depreciation of mental work would be in order, if
ways and means were to be found to render the advancement of
science as difficult and slow as possible; they are decidedly not
in the interest of science, and can not have been inspired by a
desire for its promotion.

As the evidence of the specific heats of the fallacy of
Avogadro’s hypothesis involves lengthy explanations, the subject is
reserved for another paper.

San Francisco, Cal., May, 1881.

E. VOGEL.

DYEING REDS WITH ARTIFICIAL ALIZARIN.

By M. MAURICE PRUD’HOMME.

Since several years, the methods of madder dyeing have undergone
a complete revolution, the origin of which we will seek to point
out. When artificial alizarin, thanks to the beautiful researches
of Graebe and Liebermann, made its industrial appearance in 1869,
it was soon found that the commercial product, though yielding
beautiful purples, was incapable of producing brilliant reds (C.
Koechlin). While admitting that the new product was identical with
the alizarin extracted from madder, we were led to conclude that in
order to produce fine Turkey reds, the coloring matters which
accompany alizarin must play an important part. This was the idea
propounded by Kuhlmann as far back as 1828 (Soc. Ind. de
Mulhouse, 49, p. 86). According to the researches of MM.
Schützenberger and Schiffert, the coloring matters of madder
are alizarin, purpurin, pseudopurpurin, purpuroxanthin, and an
orange matter, which M. Rosenstiehl considers identical with
hydrated purpurin. Subsequently, there have been added to the list
an orange body, purpuroxantho-carbonic acid of Schunck and Roemer,
identical with the munjistin found by Stenhouse in the madder of
India. It was known that purpuroxanthin does not dye; that
pseudopurpurin is very easily transformed into purpurin, and the
uncertainty which was felt concerning hydrated purpurin left room
merely for the hypothesis that Turkey-red is obtained by the
concurrent action of alizarin and purpurin. In the meantime, the
manufacture of artificial alizarin became extended, and a compound
was sold as “alizarin for reds.” It is now known, thanks to the
researches of Perkin, Schunck, Roemer, Graebe, and Liebermann, that
in the manufacture of artificial alizarin there are produced three
distinct coloring matters–alizarin, iso or anthrapurpurin, and
flavopurpurin, the two latter being isomers of purpurin. We may
remark that purpurin has not been obtained by direct synthesis. M.
de Lalande has produced it by the oxidation of alizarin. Alizarin
is derived from monosulphanthraquinonic acid, on melting with the
hydrate of potassa or soda. It is a dioxyanthraquinone.

Anthrapurpurin and flavopurpurin are obtained from two isomeric
disulphanthraquinonic acids, improperly named isoanthraflavic and
anthraflavic acids, which are converted into anthrapurpurin and
flavopurpurin by a more profound action of potassa. These two
bodies are trioxyanthraquinones.

We call to mind that alizarin dyes reds of a violet tone, free
from yellow; roses with a blue cast and beautiful purples.
Anthrapurpurin and flavopurpurin differ little from each other,
though the shades dyed with the latter are more yellow. The reds
produced with these coloring matters have a very bright yellowish
reflection, but the roses are too yellow and the purples incline to
a dull gray.

Experience with the madder colors shows that a mixture of
alizarin and purpurin yields the most beautiful roses in the steam
style, but it is not the same in dyeing, where the roses got with
fleur de garance have never been equaled.

“Alizarins for reds” all contain more or less of alizarin
properly so-called, from 1 to 10 per cent., along with
anthrapurpurin and flavopurpurin. This proportion does not affect
the tone of the reds obtained further than by preventing them by
having too yellow a tone.

The first use of the alizarins for reds was for application of
styles, that is colors containing at once the mordant and the
coloring matter and fixed upon the cloth by the action of steam.
Good steam-reds were easily obtained by using receipts originally
designed for extracts of madder (mixtures of alizarin and
purpurin). On the other hand, the first attempts at dyeing red
grounds and red pieces were not successful. The custom of dyeing up
to a brown with fleur and then lightening the shade by a succession
of soapings and cleanings had much to do with this failure. Goods,
mordanted with alumina and dyed with alizarin for reds up to
saturation, never reach the brown tone given by fleur or garancin.
This tone is due in great part to the presence of fawn colored
matters, which the cleanings and soapings served to destroy or
remove. The same operations have also another end–to transform the
purpurin into its hydrate, which is brighter and more solid. The
shade, in a word, loses in depth and gains in brightness. With
alizarins for reds, the case is quite different; they contain no
impurities to remove and no bodies which may gain brightness in
consequence of chemical changes under the influence of the
clearings and soapings. These have only one result, in addition to
the formation of a lake of fatty acid, that is to make the shades
lose in intensity. The method of subjecting reds got up with
alizarin to the same treatment as madder-reds was faulty.

There appeared next a method of dyeing bases upon different
principles. The work of M. Schützenberger (1864) speaks of the
use of sulpho-conjugated fatty acids for the fixation of aniline
colors. In England, for a number of years, dyed-reds had been
padded in soap-baths and afterwards steamed to brighten the red. In
1867, Braun and Cordier, of Rouen, exhibited Turkey reds dyed in
five days. The pieces were passed through aluminate of soda at
18° B., then through ammonium chloride, washed, dyed with
garancin, taken through an oil-bath, dried and steamed for an hour,
and were finally cleared in the ordinary manner for Turkey-reds.
The oil-bath was prepared by treating olive-oil with nitric acid.
This preparation, invented by Hirn, was applied since 1846 by Braun
(Braun and Cordier). Since 1849, Gros, Roman, and Marozeau, of
Wesserling, printed fine furniture styles by block upon pieces
previously taken through sulpholeic acid. When the pieces were
steamed and washed the reds and roses were superior to the old dyed
reds and roses produced at the cost of many sourings and soapings.
Certain makers of aniline colors sold mixtures ready prepared for
printing which were known to contain sulpholeic acids. There was
thus an idea in the air that sulpholeic acid, under the influence
of steam, formed brilliant and solid lakes with coloring matters.
These facts detract in nothing from the merit of M. Horace
Koechlin, who combined these scattered data into a true discovery.
The original process may be summed up under the following heads:
Printing or padding with an aluminous mordant, which is fixed and
cleaned in the usual manner; dyeing in alizarin for reds with
addition of calcium acetate; padding in sulpholeic acid and drying;
steaming and soaping. The process was next introduced into England,
whence it returned with the following modifications; in place of
olive-oil or oleic acid, castor oil was used, as cheaper, and the
number of operations was reduced. Castor oil, modified by sulphuric
acid, can be introduced at once into the dye-beck, so that the
fixation of the coloring matter as the lake of a fatty acid is
effected in a single operation. The dyeing was then followed by
steaming and soaping.

For red on white grounds and for red grounds, a mordant of red
liquor at 5° to 6° B. is printed on, with a little salt of
tin or nitro-muriate of tin. It is fixed by oxidation at 30° to
35° C., and dunged with cow-dung and chalk. The pieces are then
dyed with 1 part alizarin for reds at 10 per cent., ¼ to
½ oil for reds (containing 50 per cent.), 1-6th part acetate
of lime at 15° B., giving an hour at 70° and half an hour
at the same heat. Wash, pad in oil (50 to 100 grms. per liter of
water), dry on the drum, or better, in the hot flue, and steam for
three-quarters to an hour and a half. The padding in oil is
needless, if sufficient oil has been used in dyeing, and the pieces
may be at once dried and steamed. Wash and soap for three-quarters
of an hour at 60°. Give a second soaping if necessary. If there
is no fear of soiling the whites, dye at a boil for the last
half-hour, which is in part equal to steaming.

Red pieces and yarns may be dyed by the process just given for
red grounds; or, prepare in neutral red oil, in the proportion of
150 grms. per liter of water for pieces and 15 kilos for 100 kilos
of yarns. For pieces, pad with an ordinary machine with rollers
covered with calico. Dry the pieces in the drum, and the yarn in
the stove. Steam three-quarters of an hour at 1½ atmosphere.
Mordant in pyrolignite of alumina at 10° B., and wash
thoroughly. Dye for an hour at 70°, and half an hour longer at
the same heat, using for 100 kilos of cloth or yarn 20 kilos
alizarin at 10 per cent., 10 kilos acetate of lime at 18° B.,
and 5 kilos sulpholeic acid. Steam for an hour. Soap for a longer
or shorter time, with or without the addition of soda crystals.
There may be added to the aluminous mordant a little salt of tin to
raise the tone. Lastly, aluminate of soda may be used as a mordant
in place of red liquor or sulphate of alumina.

Certain firms employ a so-called continuous process. The pieces
are passed into a cistern 6 meters long and fitted with rollers.
This dye-bath contains, from 3 to 5 grms. of alizarin per liter of
water, and is heated to 98°. The pieces take 5 minutes to
traverse this cistern, and, owing to the high temperature and the
concentration of the dye liquor, they come out perfectly dyed. Two
pieces may even be passed through at once, one above the other. As
the dye-bath becomes exhausted, it must be recruited from time to
time with fresh quantities of alizarin. The great advantage of this
method is that it economizes not merely time but coloring
matter.

The quantity of acetate of lime to be employed in dyeing varies
with the composition of the mordant and with that of the water.
Schlumberger has shown that Turkey-red contains 4 molecules of
alumina to 3 of lime. Rosenstiehl has shown that alumina mordants
are properly saturated if two equivalents of lime are used for each
equivalent of alizarin, if the dyeing is done without oil. These
figures require to be modified when the oil is put into the dye
beck, as it precipitates the lime. Acetate of lime at 15° B.,
obtained by saturating acetic acid with chalk and adding a slight
excess of acetic acid, contains about ¼ mol. acetate of
lime.–Bulletin de la Société Chimique de
Paris.

THE SCIENTIFIC AMERICAN SUPPLEMENT.

PUBLISHED WEEKLY.

Terms of Subscription, $5 a Year.

Sent by mail, postage prepaid, to subscribers in any part of the
United States or Canada. Six dollars a year, sent, prepaid, to any
foreign country.

All the back numbers of THE SUPPLEMENT, from the commencement,
January 1, 1876, can be had. Price, 10 cents each.

All the back volumes of THE SUPPLEMENT can likewise be supplied.
Two volumes are issued yearly. Price of each volume, $2.50,
stitched in paper, or $3.50, bound in stiff covers.

COMBINED RATES–One copy of SCIENTIFIC AMERICAN and one copy of
SCIENTIFIC AMERICAN SUPPLEMENT, one year, postpaid, $7.00.

A liberal discount to booksellers, news agents, and
canvassers.

MUNN & CO., Publishers,

37 Park Row, New York, N. Y.

PATENTS.

In connection with the Scientific American, Messrs. MUNN
& Co. are Solicitors of American and Foreign Patents, have had
35 years’ experience, and now have the largest establishment in the
world. Patents are obtained on the best terms.

A special notice is made in the Scientific American of
all Inventions patented through this Agency, with the name and
residence of the Patentee. By the immense circulation thus given,
public attention is directed to the merits of the new patent, and
sales or introduction often easily effected.

Any person who has made a new discovery or invention can
ascertain, free of charge, whether a patent can probably be
obtained, by writing to MUNN & Co.

We also send free our Hand Book about the Patent Laws, Patents,
Caveats. Trade Marks, their costs, and how procured, with hints for
procuring advances on inventions. Address

MUNN & CO., 37 Park Row, New York.

Branch Office, cor. F and 7th Sts., Washington, D. C.
